Model |

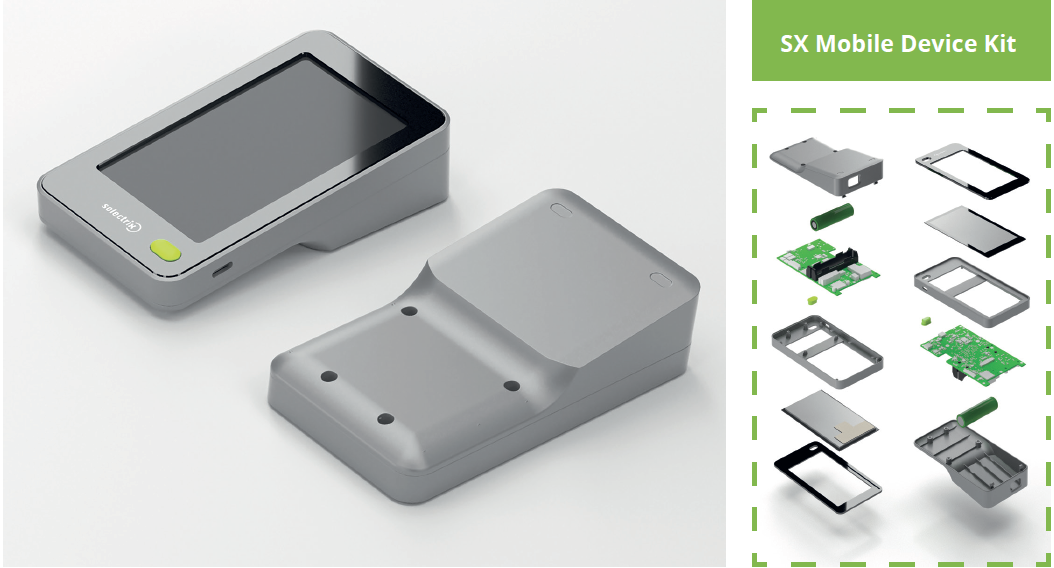

SX Mobile Device Kit |
CPU |
NXP i.MX8M Mini |
up to Quad-core Cortex-A53, 2.0GHz |
Single-core Cortex-M4F, 400MHz |
2D / 3D GPU (OpenGL ES 2.0) |
DRAM |
2GB LPDDR4 |
Storage |
8GB eMMC Flash |
Wireless |
Redpine RS9116 |
802.11 a/b/g/n (2.4 GHz and 5 GHz), 802.11j |
Dual-mode Bluetooth 5 ("Bluetooth Classic and BLE") |
Display |
4-lane MIPI DSI |
Capacitve Touch interface |
Ready for DEM 7201280A Display Moduler |
5" TFT / Resolution 720x1280 |
Camera |
Flexible sensor extension interface |
4-lane MIPI CSI-2 |
Power supply for sensor extension boards |
I2C interface for sensor configuration |
GPIO signals for flash / illumination control |
Location |
Quectel L86 |
Compact GNSS Module (GPS, GLONASS, and QZSS) |
Audio |
Maxim MAX98357A PCM Class D Amplifier |
Magnetic Speaker (0.7W / 88dB) |
PDM Microphone |
Connectivity |
microSD card slot |
2x USB Type-C (1x charging only / 1x USB OTG) |
miniPCIe connector |
RJ45 1GB Ethernet (optional) |
1x USB Type-A (optional) |
FT232 USB-to-UART |
Power |
Power Supply via USB Type-C |
18650 Li-Ion battery holder |
TI bq24161 charger on-board |
TI bq27520 Fuel Gauge on-board |
Wireless Charging extension connector |
Operating systems |
Android 9 ("Pie") |
Yocto Linux BSP |
Debian Linux BSP |
PCB dimensions |
125mm × 78mm |
