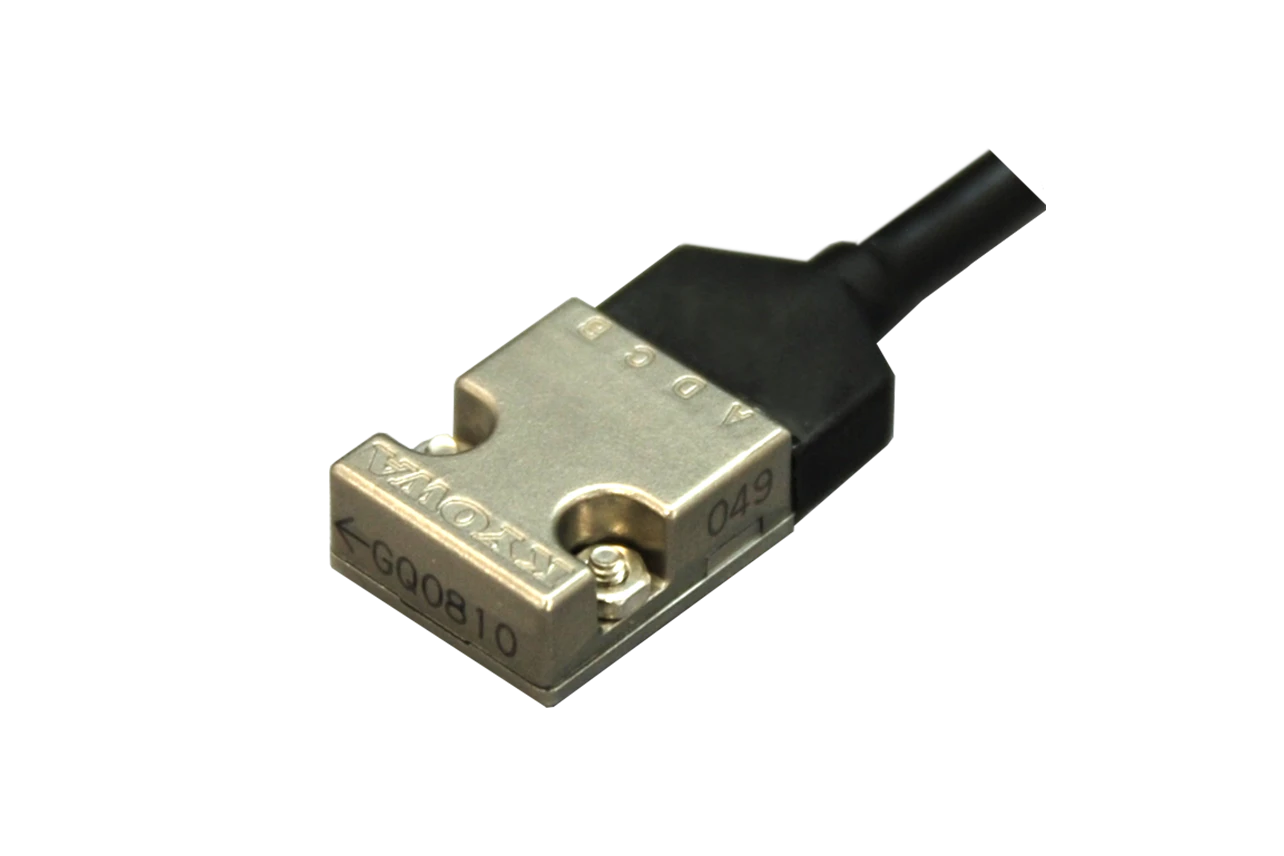

Semiconductor Acceleration Transducer for Crash Test
Overview
The ASM-A-ID is a semiconductor acceleration transducer for crash tests.
Rated Capacity: ±19613m/s² (2000G)
Rated Output: 6 mV/V or more
Frequency Response: DC to 2.8kHz, sensitivity deviation: ±5% at 23ºC
Key Features
Larger capacity and output than conventional models
Buit-in TEDS to save labor for preparation
No damping oil ensures no temperature effects on frequency response and minimal phase shift
To Ensure Safe Usage
Excitation voltage should be 2VDC.
Transducer output characteristics
*Not in accordance with the direction of acceleration
