Jack Load Cell

Overview

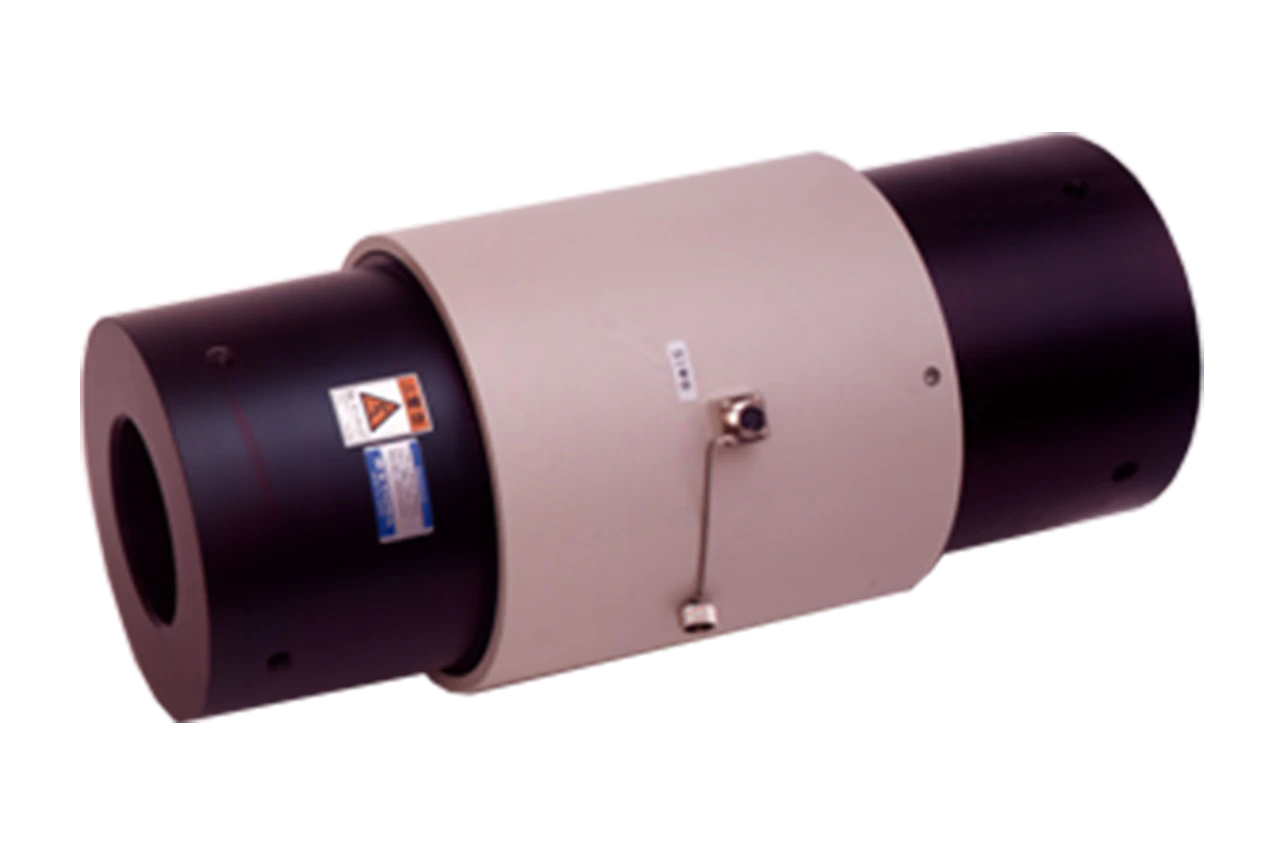

The LUR-B-SA1 is load cell for measuring loads applied to jacks.
Rated Capacity: ±10kN to ±2MN
Diameter: 100mm (±10kN), 110mm (±20kN), 125mm (±30kN, ±50kN), 175mm (±100kN), 255mm (±200kN, ±300kN), 330mm (±500kN), 430mm (±1MN), 530mm (±1.5MN), 590mm (±2MN) Nonlinearity: Within ±0.2% RO for 10 kN to 200kN, within ±0.5% RO for 300kN to 2MN

Key Features

Installed between Jack and the target structure

Variety of capacity

As for the capacity of 200kN or more, calibration is performed for compressive load only.

Remarks

With the capacity of 200 kN or more, calibration is performed for compression load only.
