Tension/Compression Load Cell
Overview

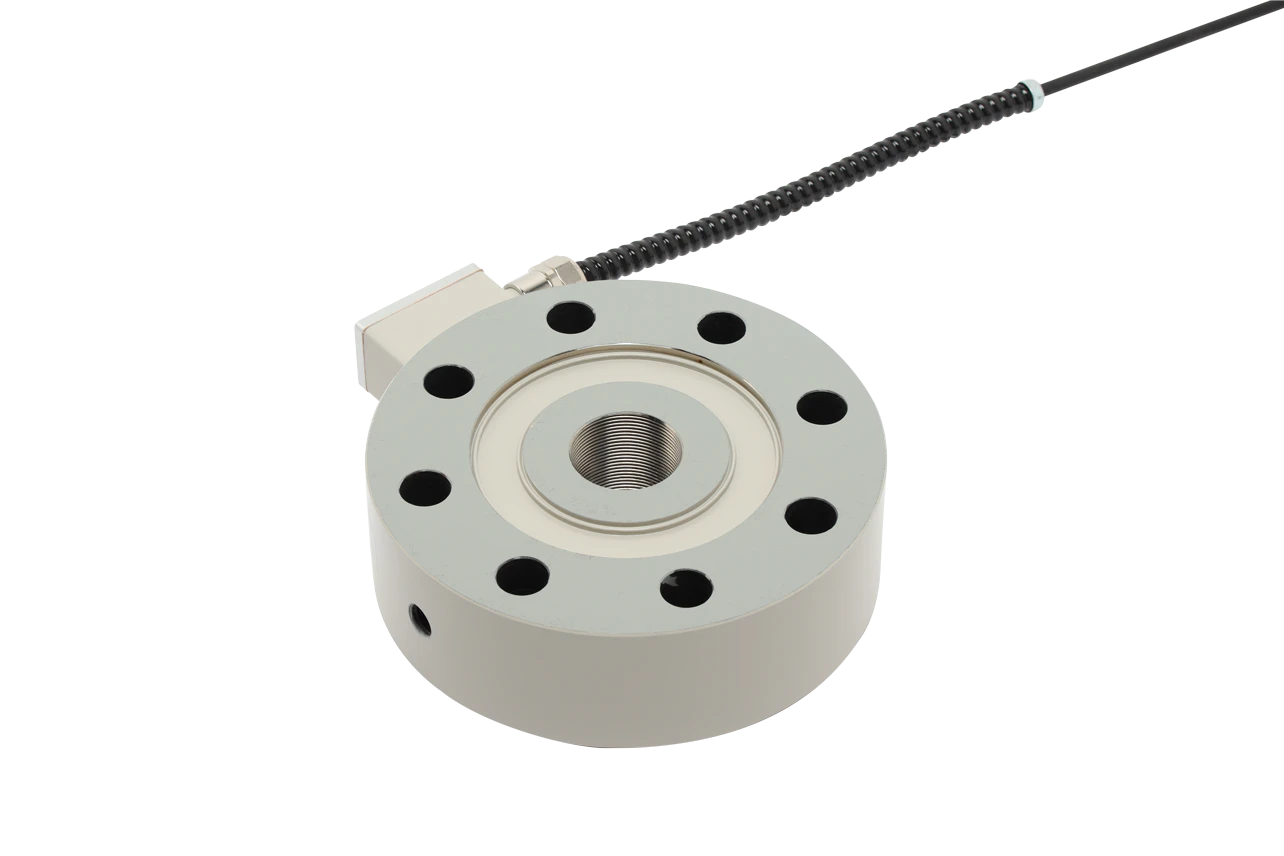

The LUK-A is a a thin load cell for measuring tension or compression loads. It can be installed to where the height is limited. It also suitable for fatigue test where repeativite loads are applied continuously.
Rated Capacity: ±5kN to ±2MN
Diameter: 77mm (±5kN to ±10kN), 107mm (±20kN), 127mm (±50kN), 157mm (±100kN), 227mm (±200kN), 307mm (±500kN), 375mm (±1MN), 560mm (±2MN)
Nonlinearity: Within ±0.1% RO for 5kN to 200kN, within ±0.2% RO for 500kN to 2MN
Key Features
Compact & lightweight
The service life can be extended by using under one-half of the rated capacity.
TEDS-installed versions can be manufactured. Please feel free to consu
Remarks
*When used for tension, make sure not to use special accessories such as ball-joint and rotating attachment.
The LUK-A is not applicable to setscrews.
*CE compliant models are available. Inquiries are welcome.
To Ensure Safe Usage
Be sure to prevent the shaft from turning when using for hanging load measurement.
