Thin Load Cell Multi Force Sensor
Overview

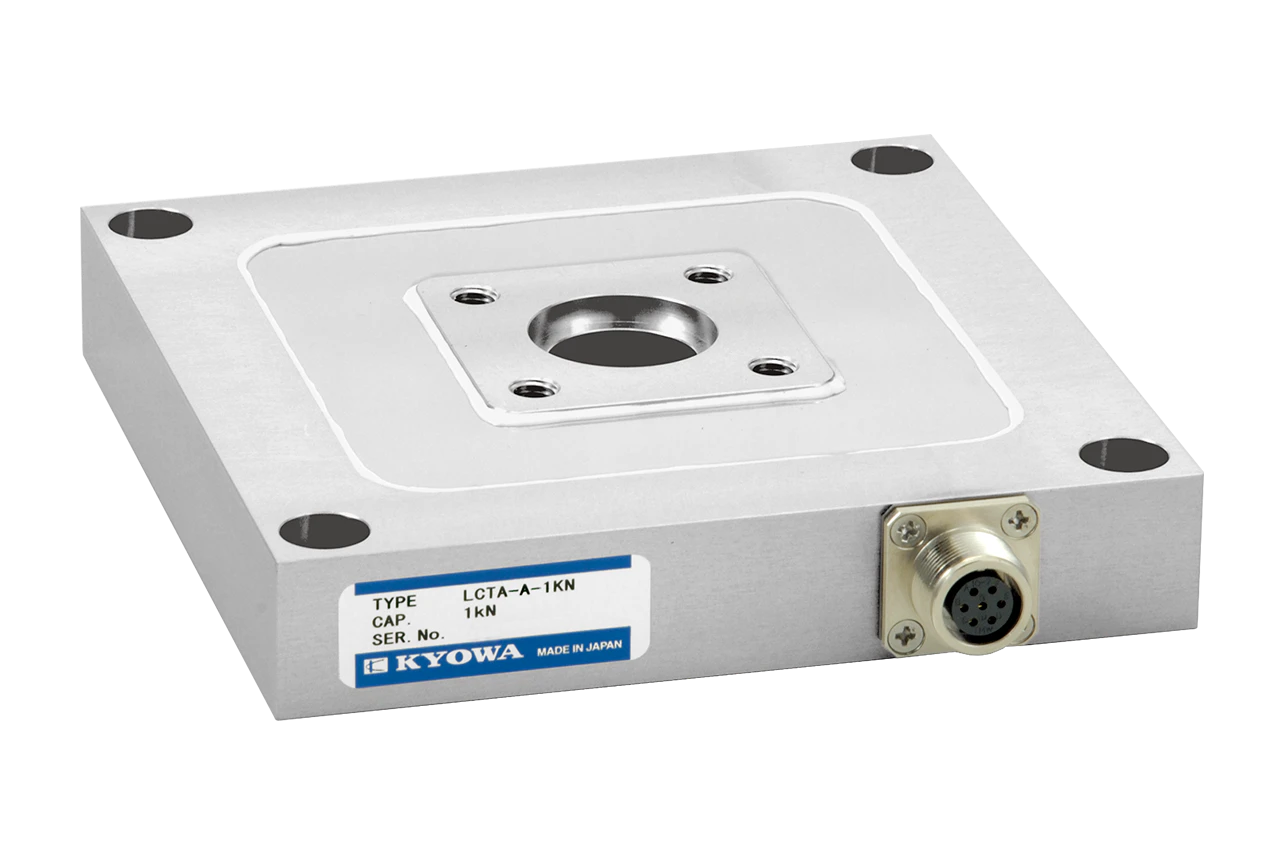

The LCTA-A is a thin load cell, capable of fixing on either top or bottom. It is excellent in vibration and shock resistant. It can withstand lateral loads up to 20% of the rated capacity.
Rated Capacity: 500N to 3kN
Diameter: 150mm
Nonlinearity: Within ±0.05% RO
Material Mixing Control
WGA-680A is compatible with CC-Link, and can be used to simplify wiring for complicating material mixing systems that use load cells to manage multiple hopper loads. It can be used to build high-speed networks (up to 10Mbps) with simple wiring to PLCs.
Key Features
Easy installation
High accuracy & reliability
TEDS-installed versions can be manufactured. Please feel free to consul
To Ensure Safe Usage
(Note 1) No LCTA-A is used for any onboard measurement.
(Note 2) No LCTA-A is used in an environment where it is frequently exposed to lateral loads.
(Note 3) No LCTA-A is installed to any inclined or vertical surfaces.
