RT-Base-S

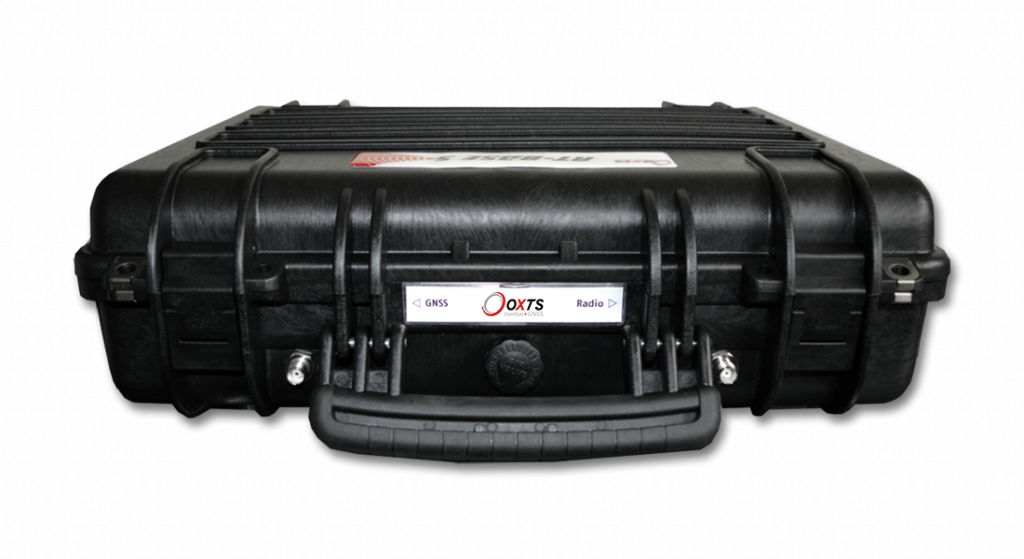

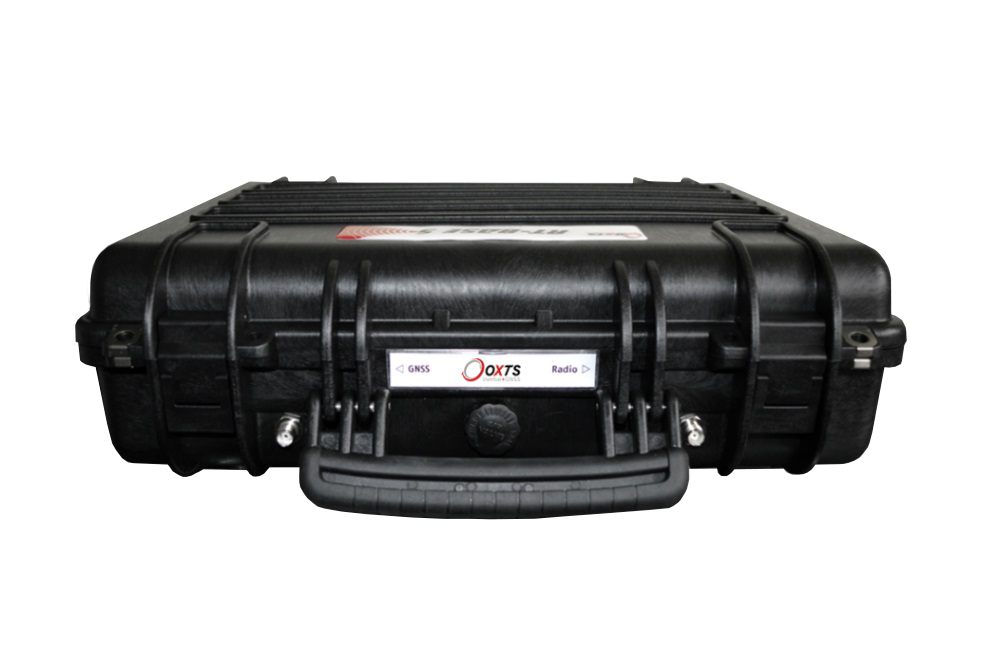

A portable and weatherproof base station for GNSS corrections.

The RT-Base-S improves data accuracy by transmitting differential corrections (DGNSS) to your inertial navigation system.

Ready to go in less than five minutes

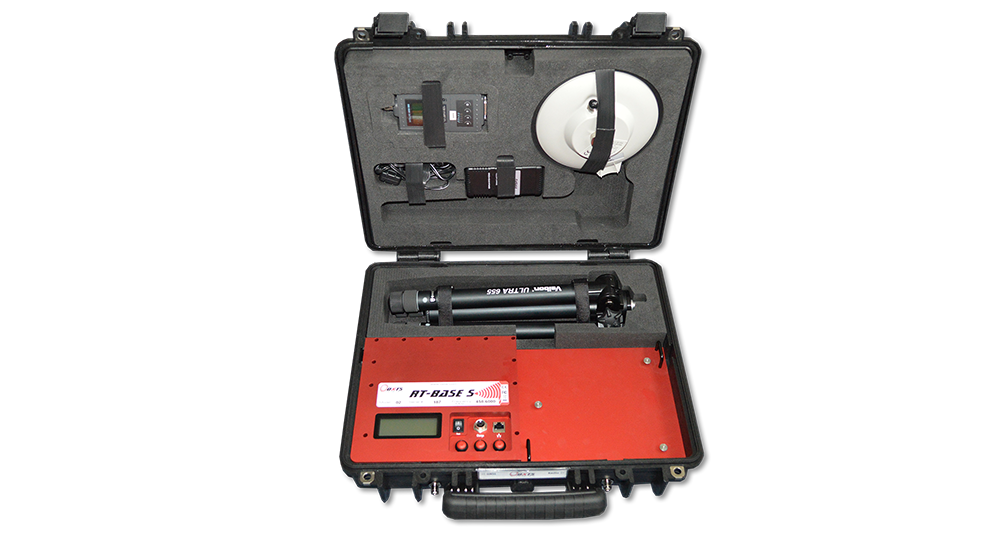

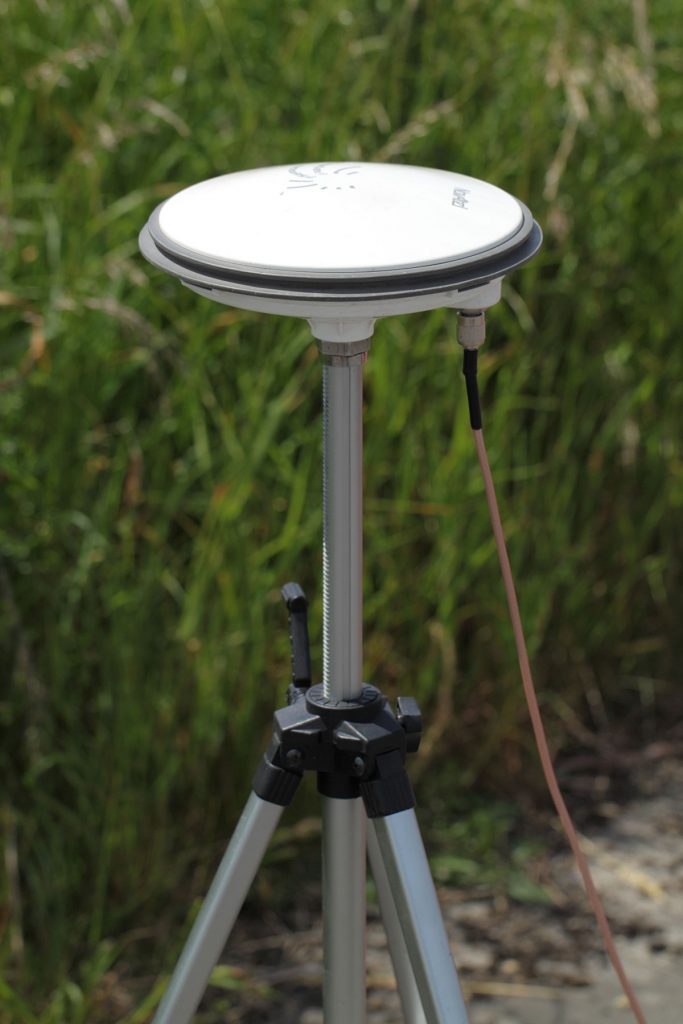

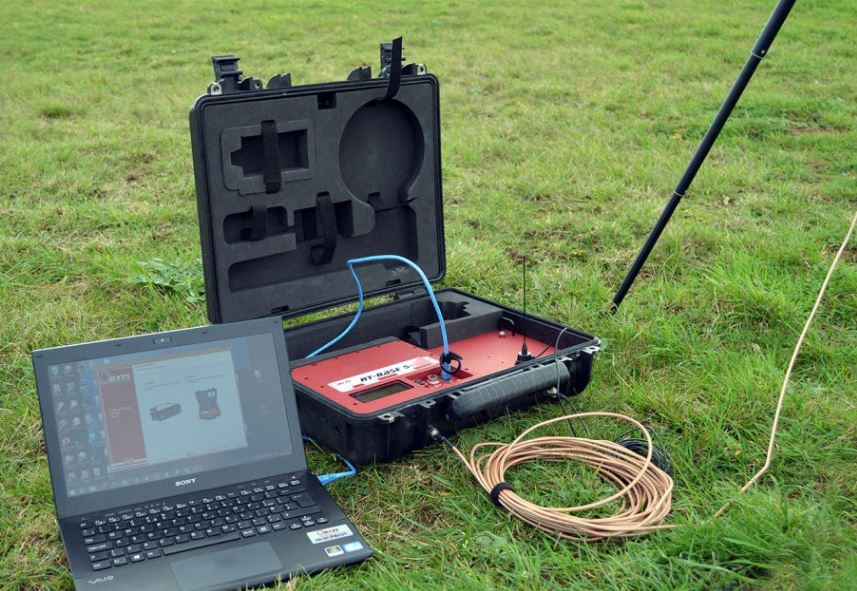

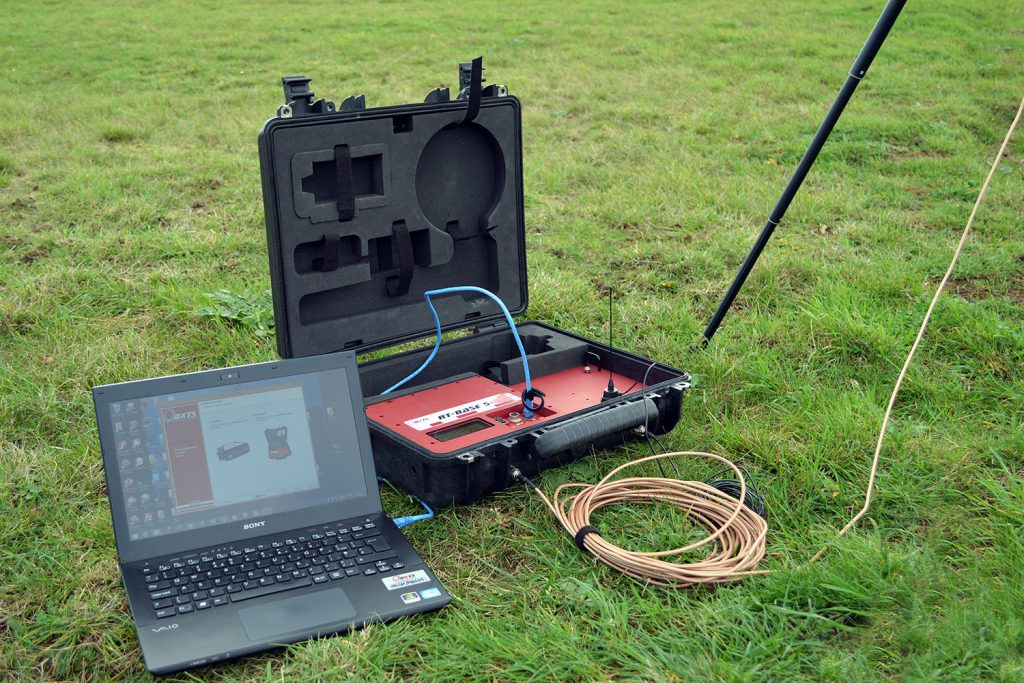

The RT-Base-S takes less than five minutes to set up. All the parts you need are in one box. Just place the antenna on the tripod and attach it to the RT-Base-S connector, attach the radio modem and you're ready to go. Once switched on, the RT-Base-S automatically computes an average position and begins transmitting DGNSS corrections so you can achieve RTK integer accuracy.

Save positions for repeat use

The RT-Base-S can save it's calculated position for later use. This saves you time if you return to the same position for data collection. It's important that you place the antenna in exactly the same position each time. When returning to frequently used locations often, this removes the chance of the averaged position changing and ensures measurements captured over several visits are always consistent.

Key Features

Configurable in less than five minutes

Internal battery provides a minimum of 24 hours of continuous operation

Operational in all weather conditions

Large number of DGNSS correction formats to choose from

Average position data calculated over a wide user-defined time period

Internally logs corrections for post-processing in case radio link is lost
