RT-XLAN
Reliable long range communication between vehicles
The RT-XLAN is a high performance wireless LAN (WLAN) radio unit capable of providing a highly reliable 1km vehicle-to-vehicle data communication link between multiple vehicles. Suitable for use with OxTS ADAS testing solutions.
Superior range communication

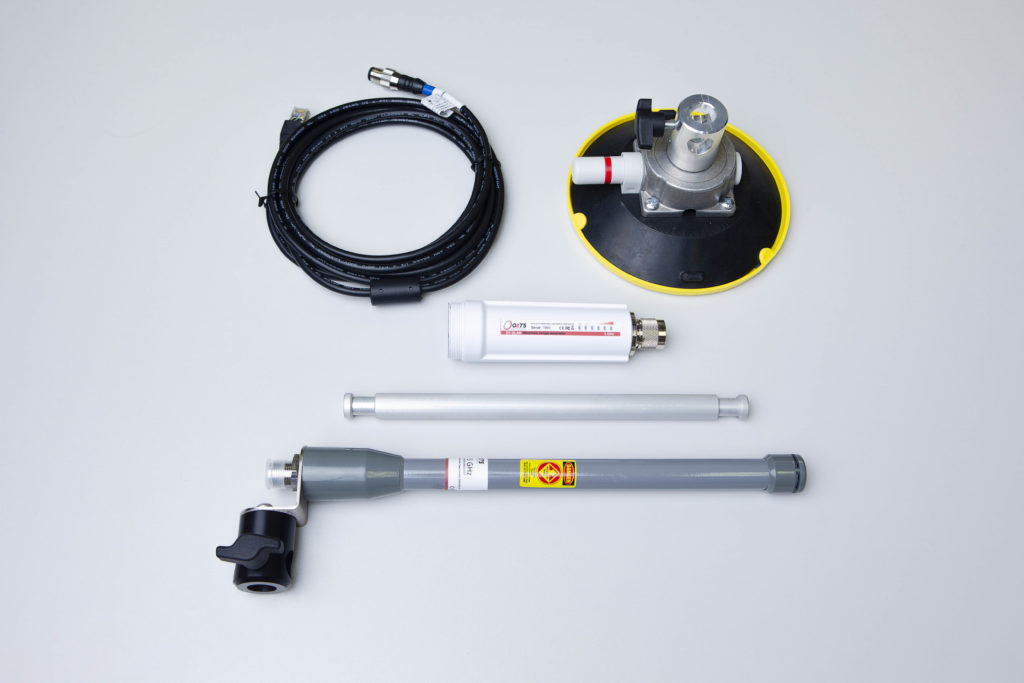

The RT-XLAN radio unit is an extremely powerful, long range WLAN solution for multiple vehicle data communication. Specifically designed for outdoor use, they have a robust, weatherproof design that can operate within a wide temperature range. They also feature a low-loss integrated N-type RF connector replacing the need for radio-to-antenna cable connection. The RT-XLAN is capable of reliably improving the data communication throughout the range and also extending the communication distance between vehicles to up to 1km line of sight.
Easy connection to RT-Range S ADAS systems
Although the RT-XLAN is designed for direct connection to the RT-Range-S system, it is equally suitable for upgrading standard RT-Range systems by using a converter cable. Using the RT-XLAN will significantly extend the range and integrity of the data measurements throughout your ADAS test. The radios are RoHS compliant, FCC approved and licence free for most countries.
Applications
Extended communication between RT-Range-S systems
RT-Range-S ADAS testing solutions including FCW, ACC & BSD
Sharing NTRIP differential corrections between multiple systems
Key Features
1km range line-of-sight
<10ms RMS latency
Highly reliable link
Robust, weatherproof design

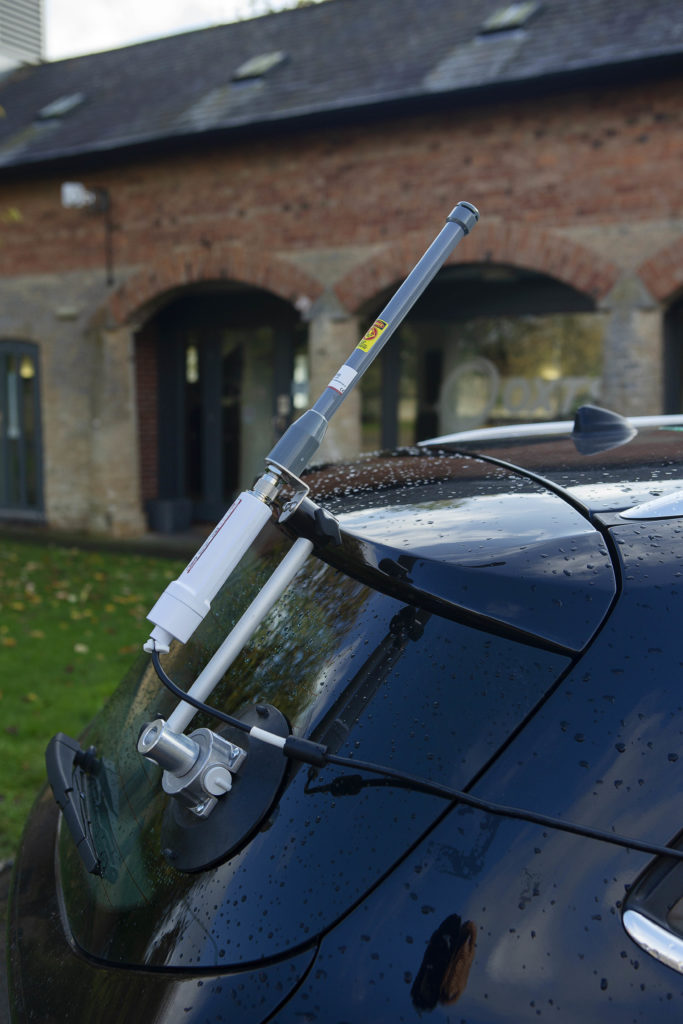

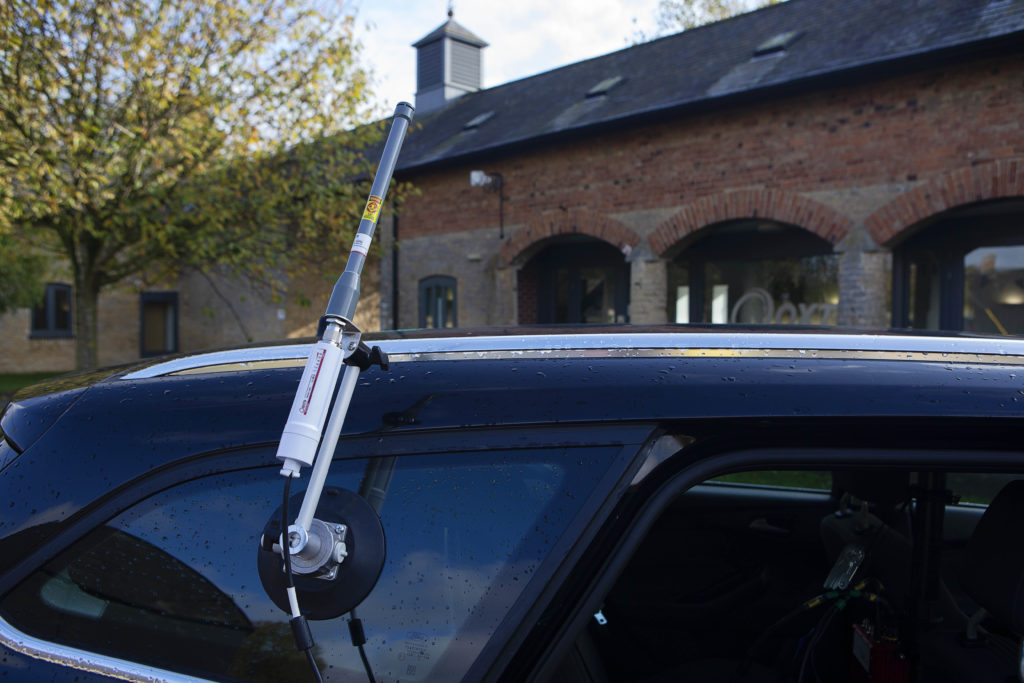

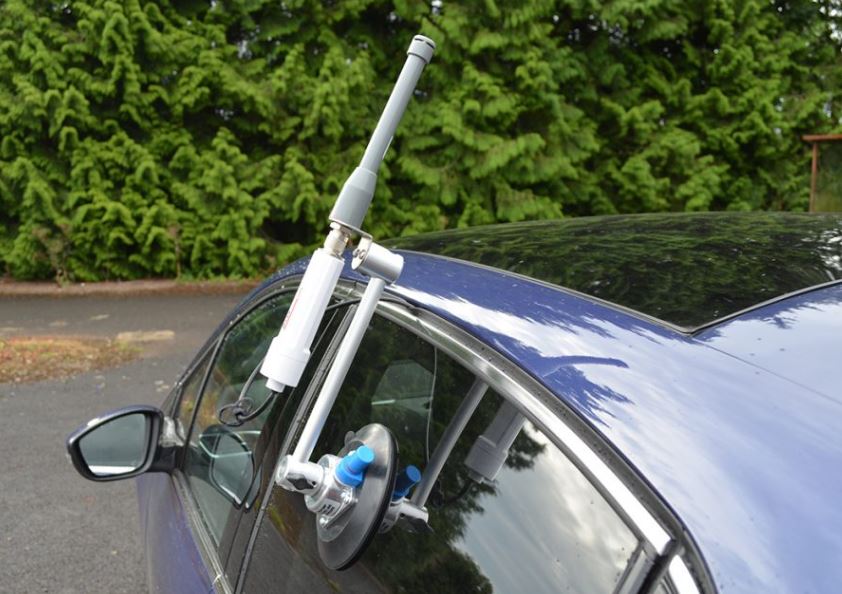

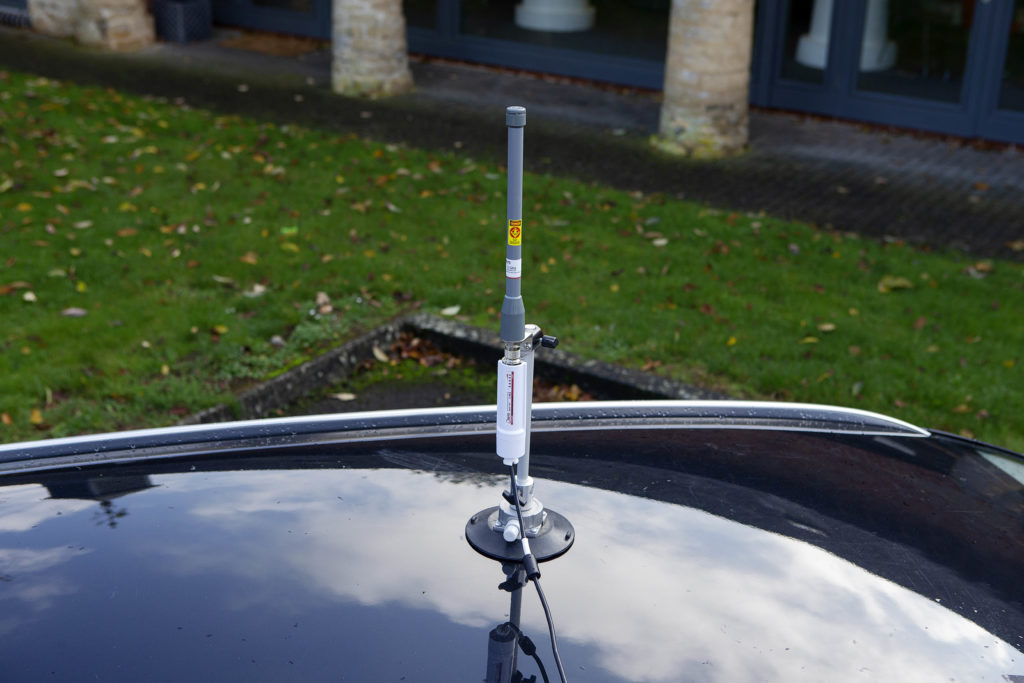

Suction cup for fast and secure mounting
Downloads
Brochure
