CoG and MoI Test Equipment
Why is accurate CoG and MoI testing important to vehicle development?
The CoG represents the point where the entire weight of a vehicle is concentrated and MoI describes how mass is distributed around different axes of rotation. When developing vehicles understanding and optimising the CoG and MoI are fundamental for creating vehicles that are stable, agile, and safe to handle during real-world driving. The MoI and CoG of a vehicle can be measured using several methods, depending on the level of accuracy and complexity required.

At AB Dynamics, our approach to CoG and MoI testing is via an optional add-on to our Kinematics and Compliance (K&C) test machine, the SPMM Plus. The option permits the measurement of the full mass inertia properties of vehicles and objects, in addition to a detailed analysis of a vehicle’s suspension characteristics under various loading conditions.

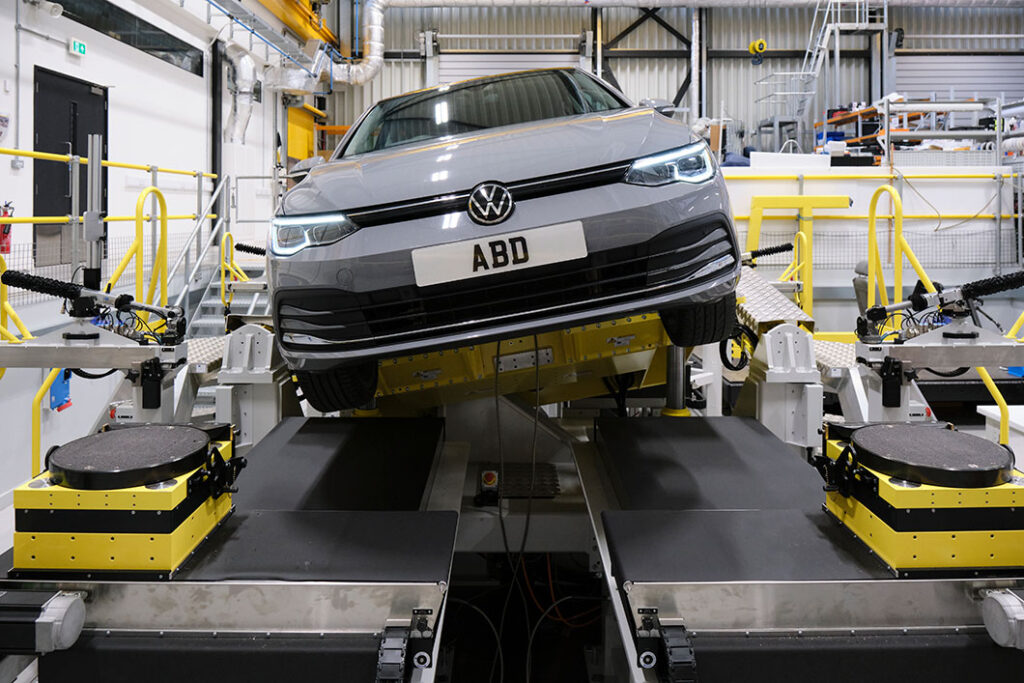

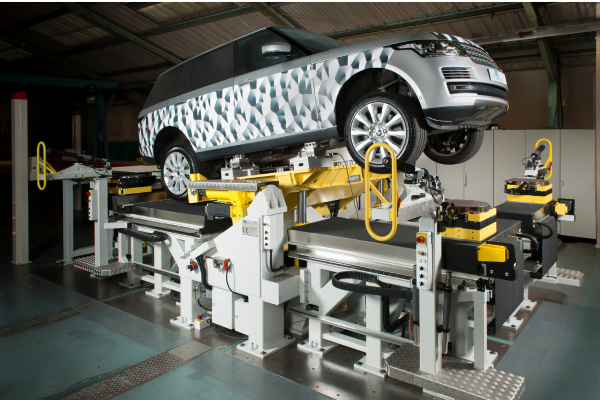

The SPMM Plus
With our Moment of Inertia Measurement System (MIMS) option the SPMM Plus is two machines in one. MIMS allows accurate measurement of CoG and principal MoI for full vehicles and vehicle components, while also being able to generate all the chassis-based data necessary for the creation of digital vehicle models in just a few hours.

The SPMM Plus is the only system to lift, roll and tilt the vehicle to derive the full moment of inertia properties, which are critical to creating an accurate digital vehicle model. In addition to this our MIMS object add-on provides the capability of measuring CoG and MoI properties of standalone objects, such as electric drive units.

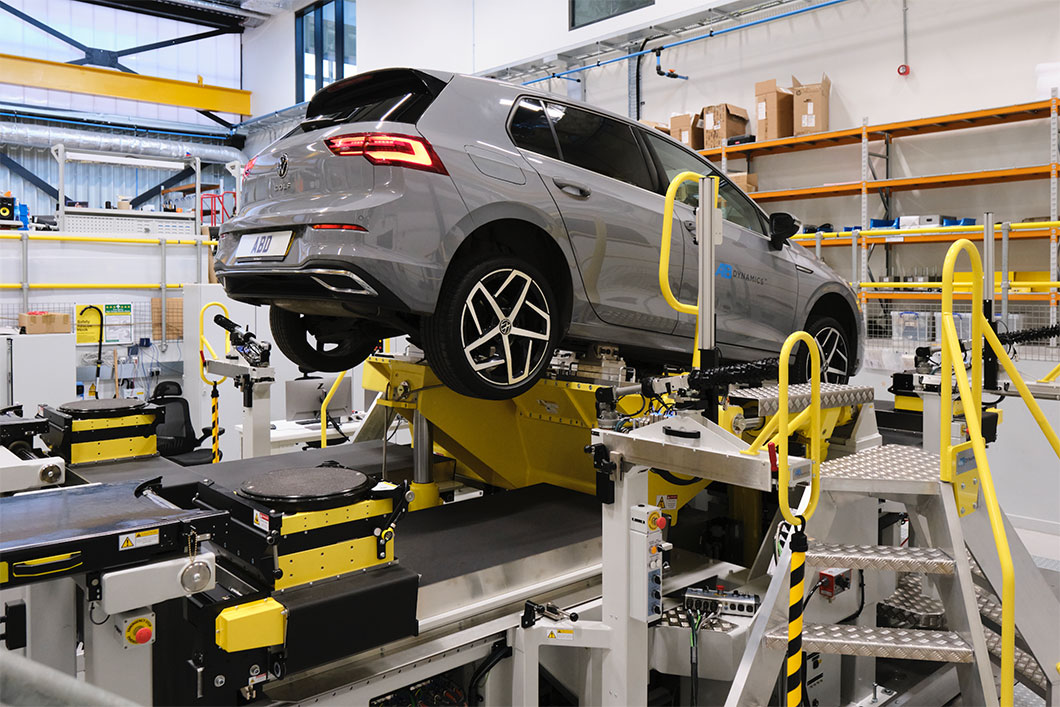

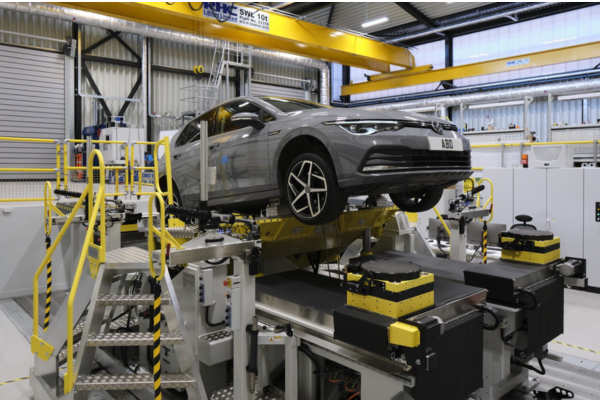

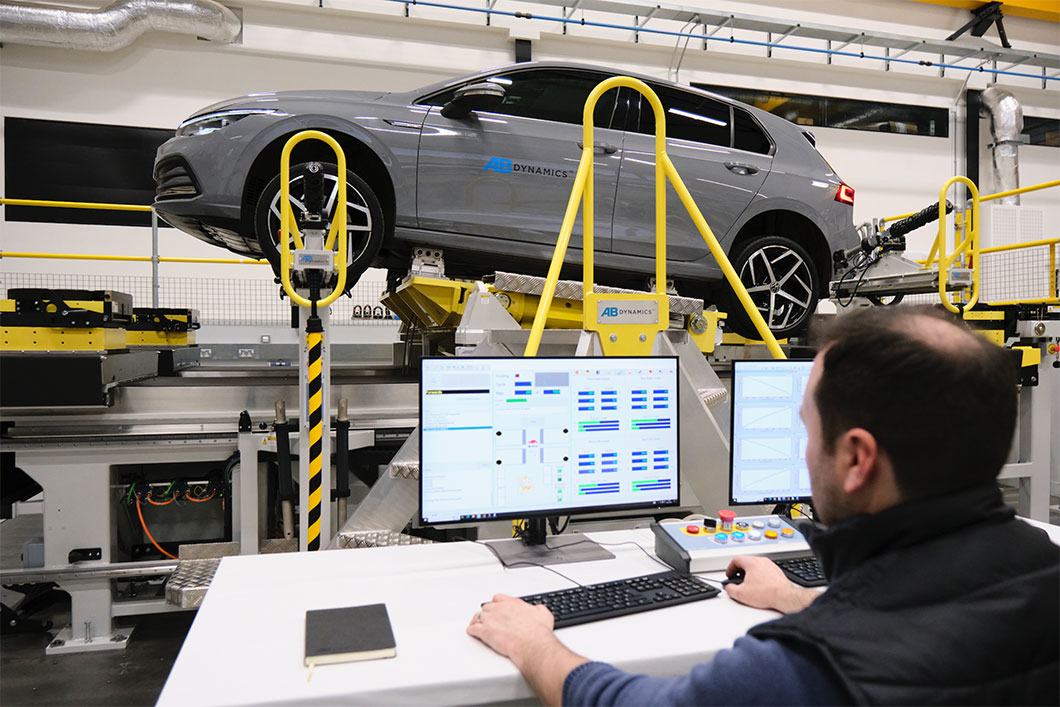

How the MIMS upgrade works
The moving body design of the SPMM Plus allows roll, pitch, bounce, and yaw motions to be applied to the vehicle body. This generates forces that are accurately measured using load cells located in the sill clamps. The simplicity of the moving body design also means the SPMM can be changed from K&C to MIMS measurement mode in less than 30 minutes, without the need to unload the vehicle. The MIMS option is available as an upgrade for both two and four-wheel station arrangements.
