SR60 Orbit
A geared steering robot that can be installed without removing the airbag, the SR 60 Orbit is ideal for vehicles with limited space

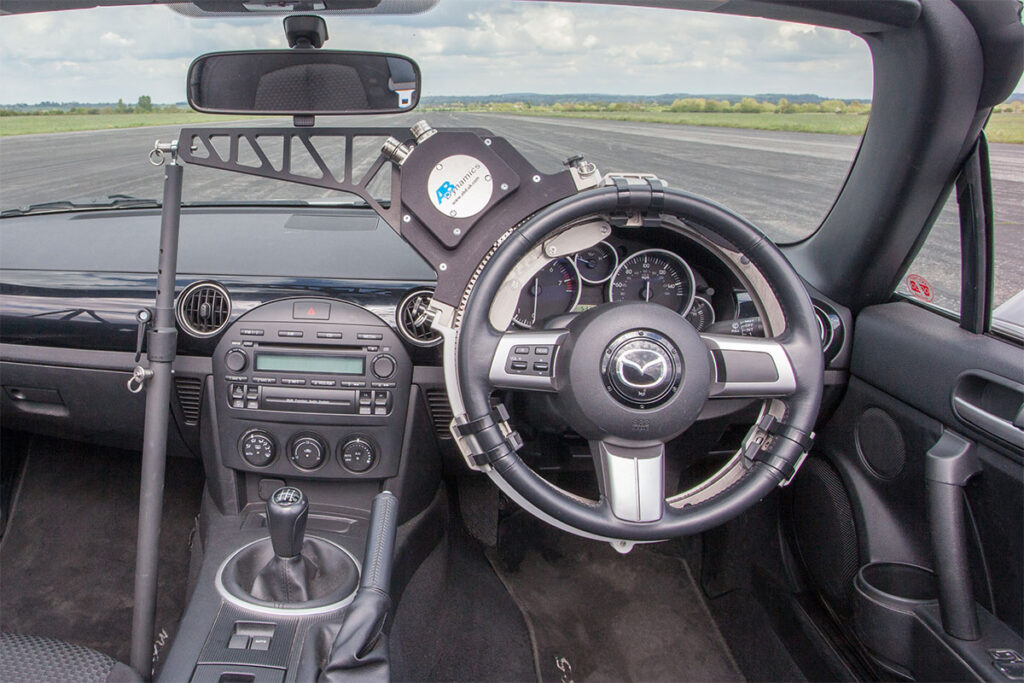

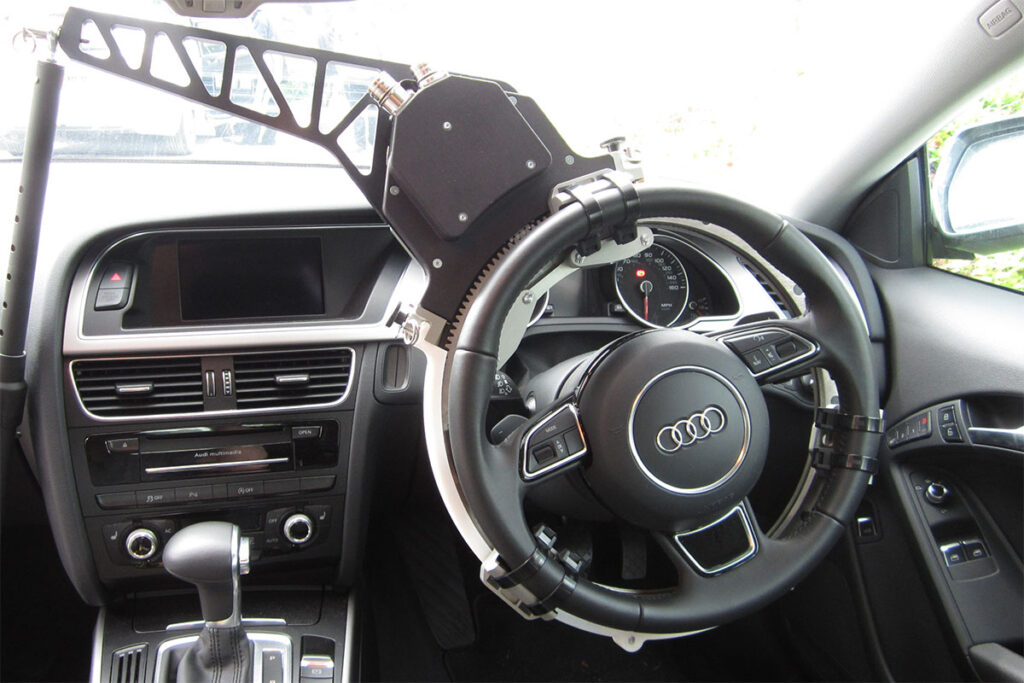

The SR 60 Orbit delivers the high torques necessary for limit testing and can be installed in vehicles without removing the steering wheel airbag. The gear ring can be separated into two halves, offering the option of ergonomic mounting behind the steering wheel. This prevents the obstruction of sensors and allowing full access to the steering controls. Alternatively, the SR 60 can be mounted in front of the rim to avoid interference with the dash or stalks. The SR 60 is suitable for a wide range of testing including legislative tests such as the fishhook and sine-dwell manoeuvres.
Technical Information
Model The SR 60 Orbit Steering Robot
Direct drive motor Yes
Hollow for use with airbag in place No
Suitable for sine-dwell/fishhook Yes
Max torque 70Nm at 580°/s
Rated torque 60Nm at 1300°/s
Max velocity 2500°/s at up to 15Nm
Motor weight 12.5kg
Adaptable for heavy vehicle testing Yes
