Technical Information

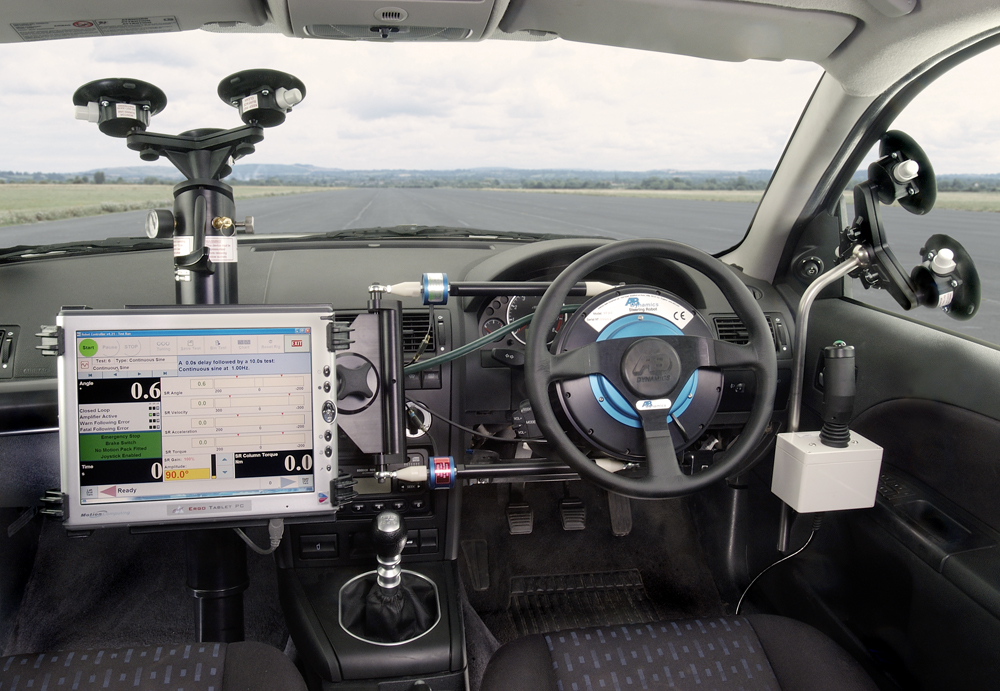

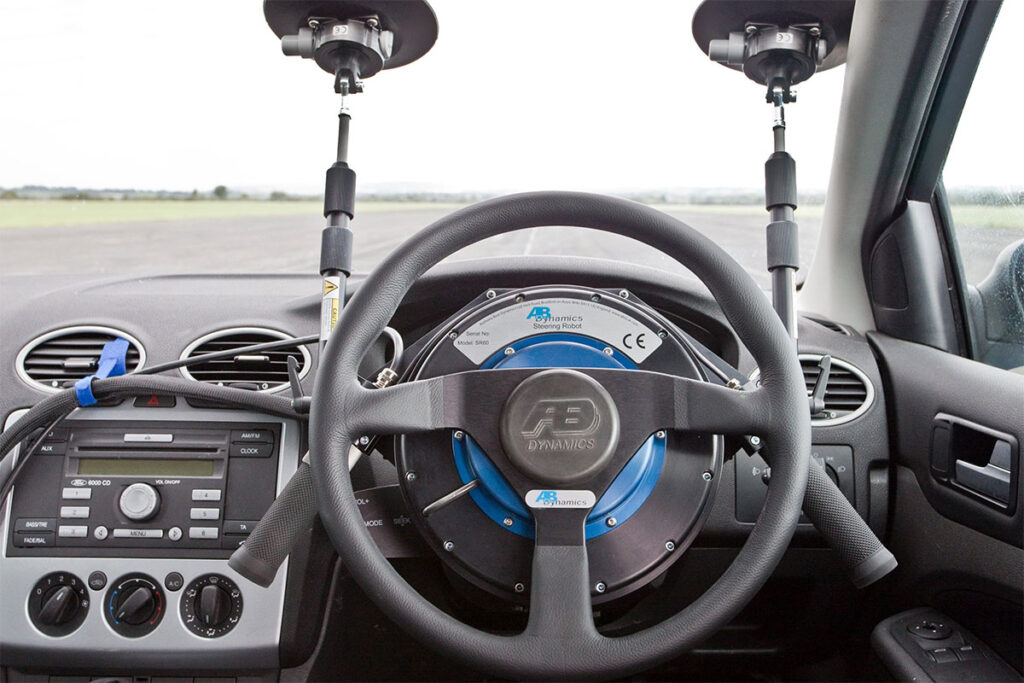

The SR 60 is a high-performance steering robot that can handle the most demanding tests such as fishhook and sine-dwell manoeuvres

Designed specifically for high-power tests such as those that employ fishhook and sine-dwell manoeuvres, the SR 60 is a best-seller, used worldwide by OEMs and test houses. With a maximum speed of 2500°/s, the SR 60 can apply steering inputs that exceed the capabilities of human drivers.

Technical Information

Model	SR 60 Steering Robot
Direct drive motor	Yes
Hollow for use with airbag in place	No
Suitable for sine-dwell/fishhook	Yes
Max torque	70Nm at 580°/s
Rated torque	60Nm at 1300°/s
Max velocity	2500°/s at up to 15Nm
Motor weight	12.5kg
Adaptable for heavy vehicle testing	Yes
