SR15

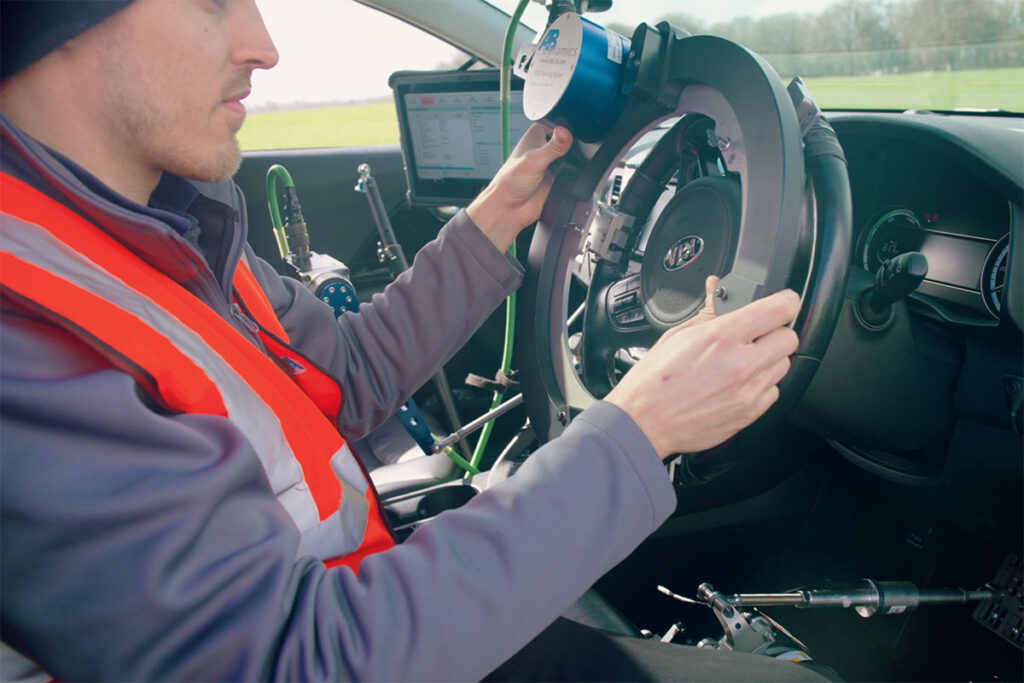

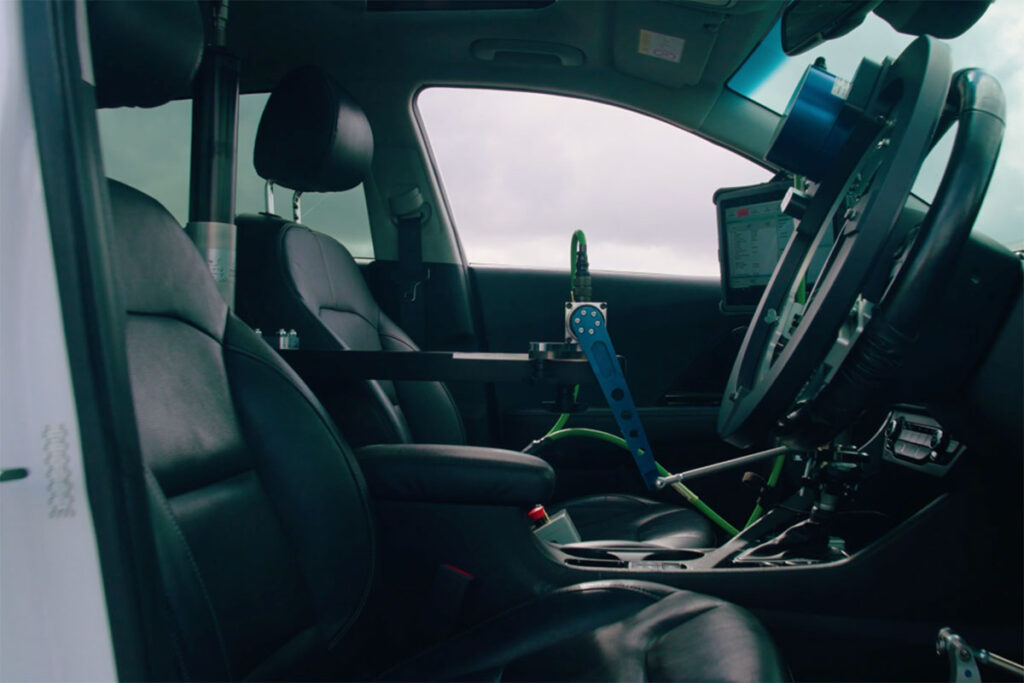

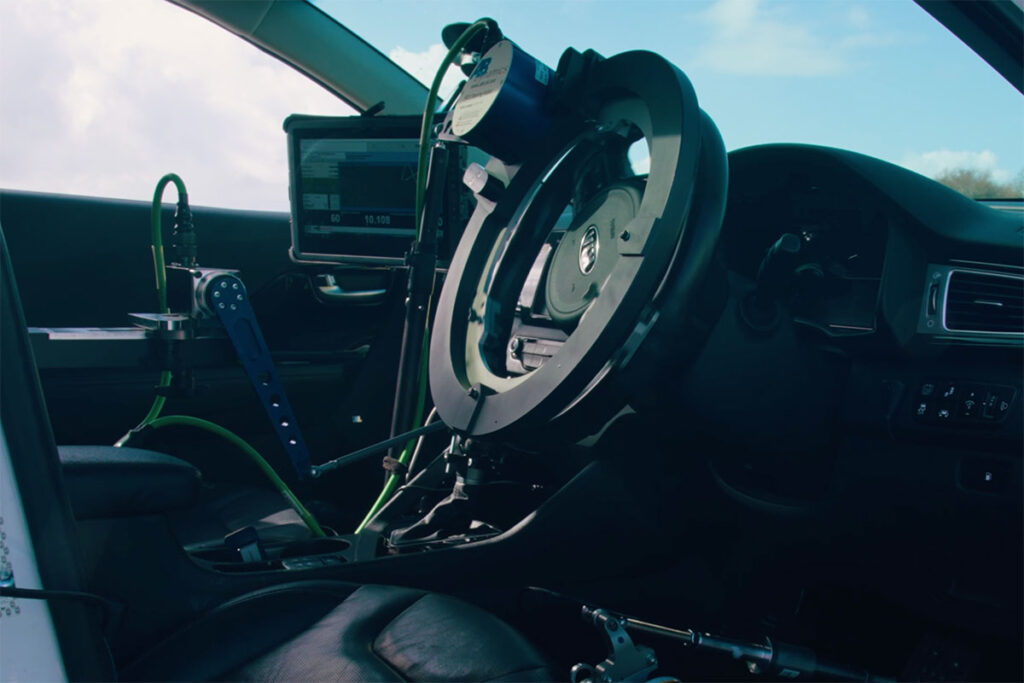

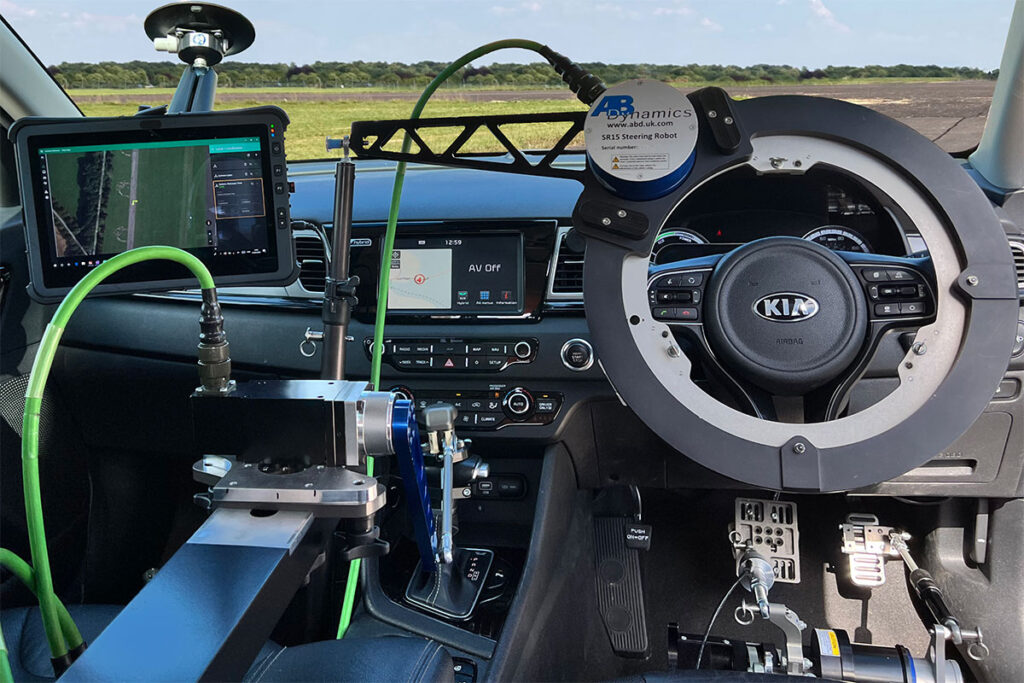

A compact and versatile steering robot that can be easily installed in any vehicle, directly to the steering wheel, without the need to remove the airbag
The SR 15 is a lower cost solution and provides a cost-effective option when multiple robot-controlled vehicles are used, such as multi-vehicle driverless applications. The SR 15 was designed to easily attach to a vehicle’s steering wheel without removing the airbag and benefits from low friction, making it a very popular choice for ADAS testing as well as durability applications.
Model SR 15 Steering Robot
Direct drive motor No
Hollow for use with airbag in place Yes
Suitable for sine-dwell/fishhook No
Max torque 20Nm @ 200°/s
Rated torque 15Nm @ 500°/s
Max velocity 1000°/s at up to 10Nm
Motor weight 5.6kg
Adaptable for heavy vehicle testing Yes
