A high accuracy, whole vehicle platform for highway-speed ADAS testing

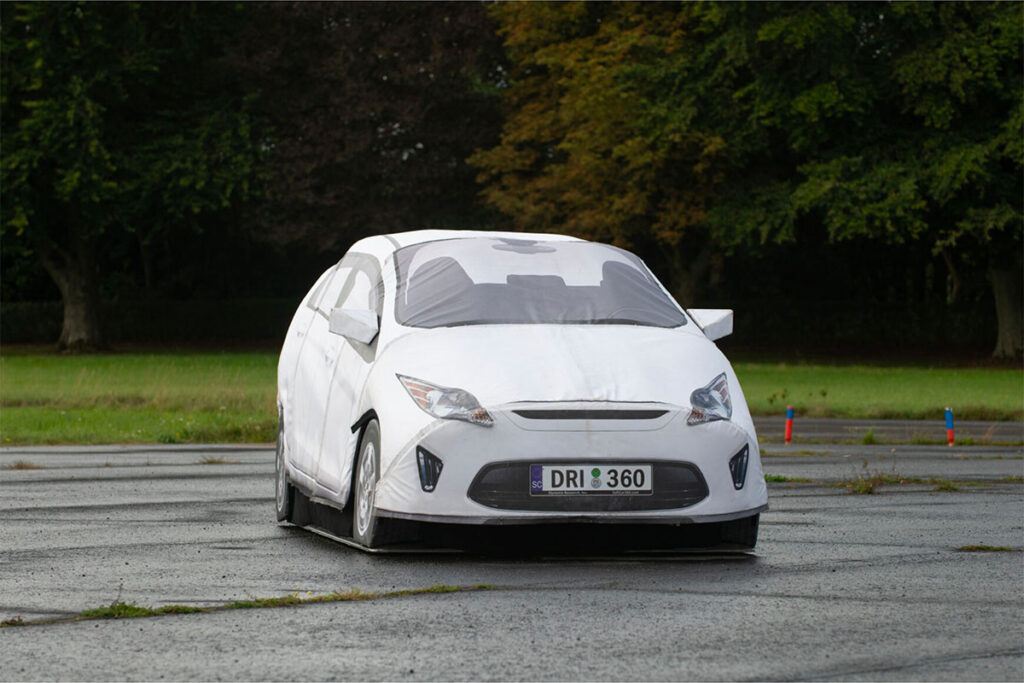

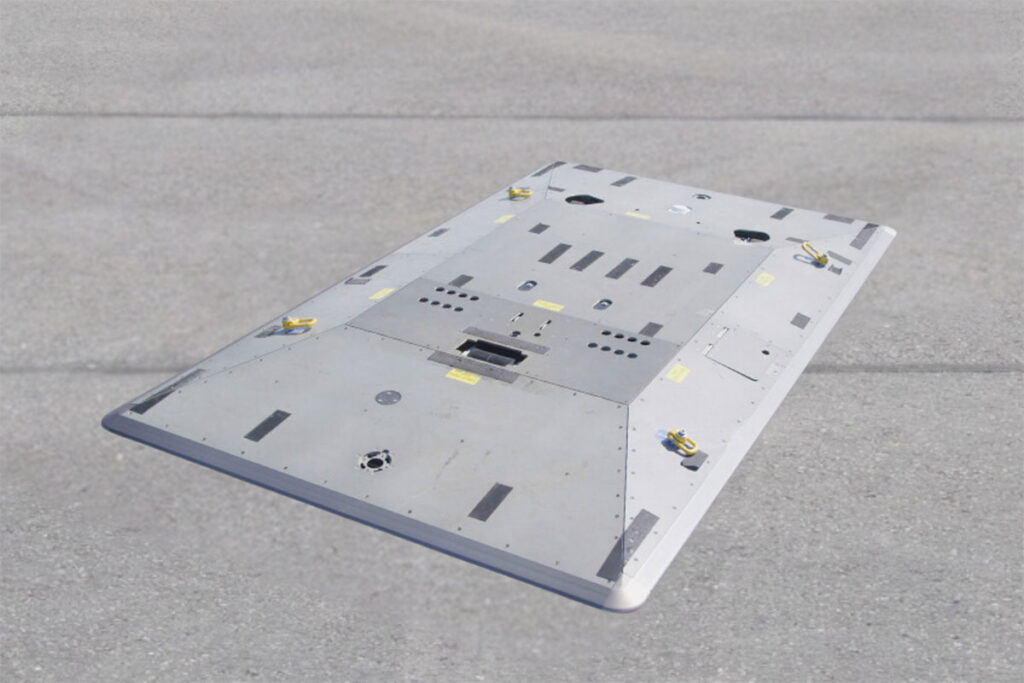

Developed to test highway assist or drive pilot systems, the GST 120 is a high-performance target platform that simulates realistic vehicle targets at highway speeds, with a large battery capacity, fast acceleration, and a stable platform for carrying various soft car bodies. Capable of a maximum speed of 120 km/h, the GST 120 is compatible with the Soft Car 360 and enables high-speed collisions to be carried out while minimising the risk of damage to the test vehicle.

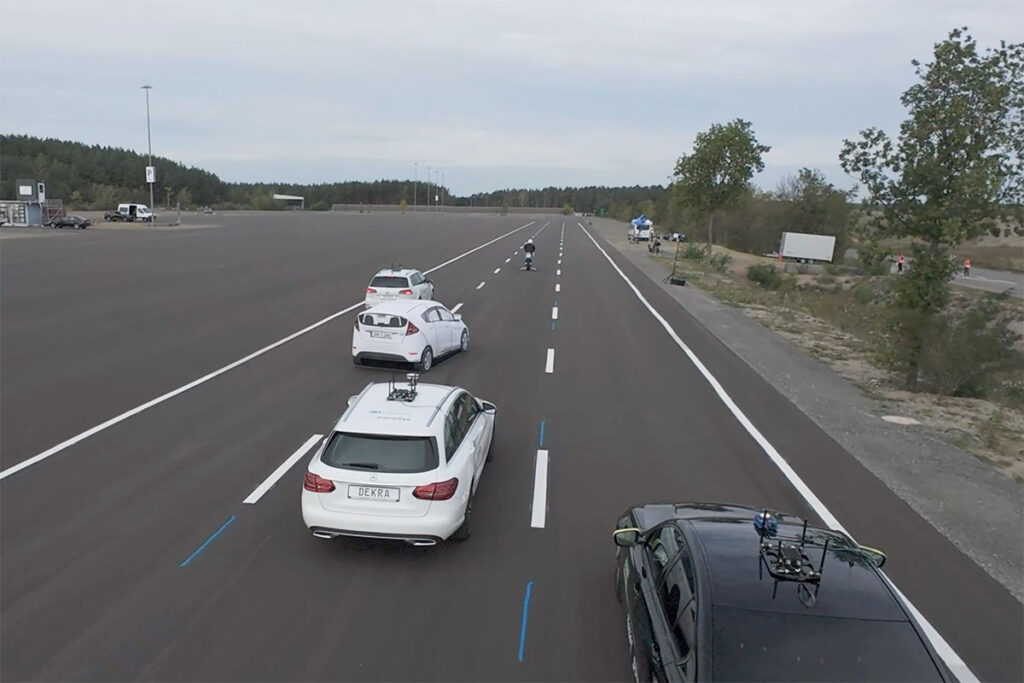

The GST 120 can also be used to create complex multi-vehicle tests. Combined with our proven path following and Synchro control technology, the GST 120 seamlessly integrates with all our other track testing products.

Dimensions
Platform length	3160mm
Platform width	1680mm
Platform height (suspension retracted into chassis)	100 mm
Platform wheelbase	1670mm
Platform front track	790mm
Performance
Path-following accuracy (1SD RMS typical maximum, compatible with OxTS and Genesys products)	2cm
Typical maximum speed (with Soft Car 360 target)	120km/h
Maximum acceleration (with Soft Car 360 target)	0.28g
Over-run capacity	Up to 1000kg per wheel (500kg with ultra-low-profile top plate). A HD version available for use with heavy trucks.
Compliance
Euro NCAP 2023 protocol	Yes
Euro NCAP TB 029	Yes
ISO 19206-3	Yes
