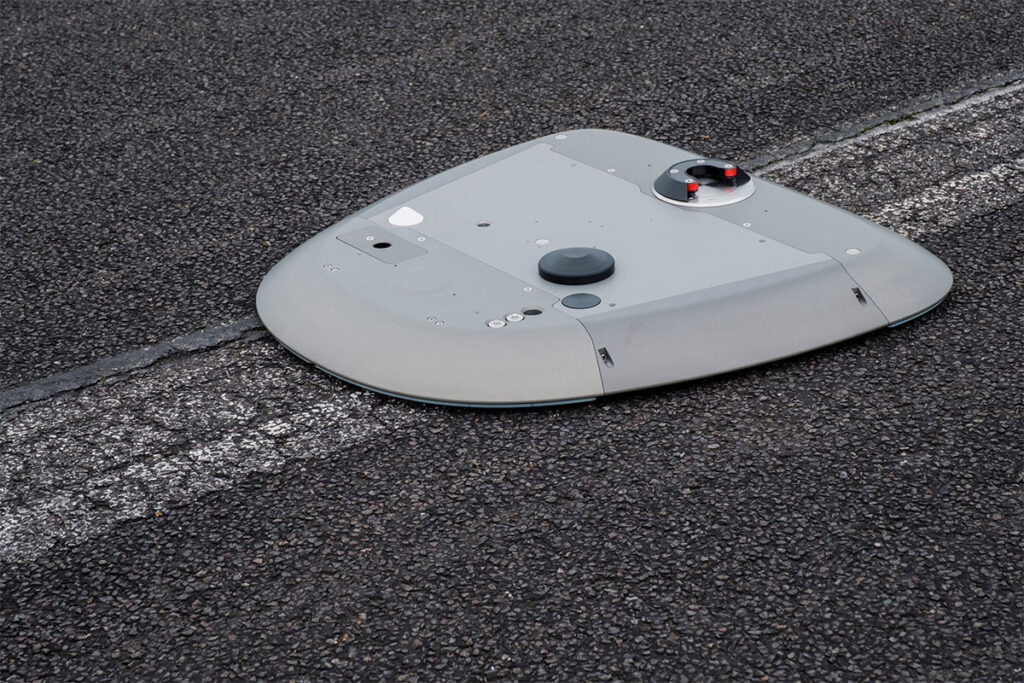

GST100
An essential tool for developing and testing driver assistance technology.

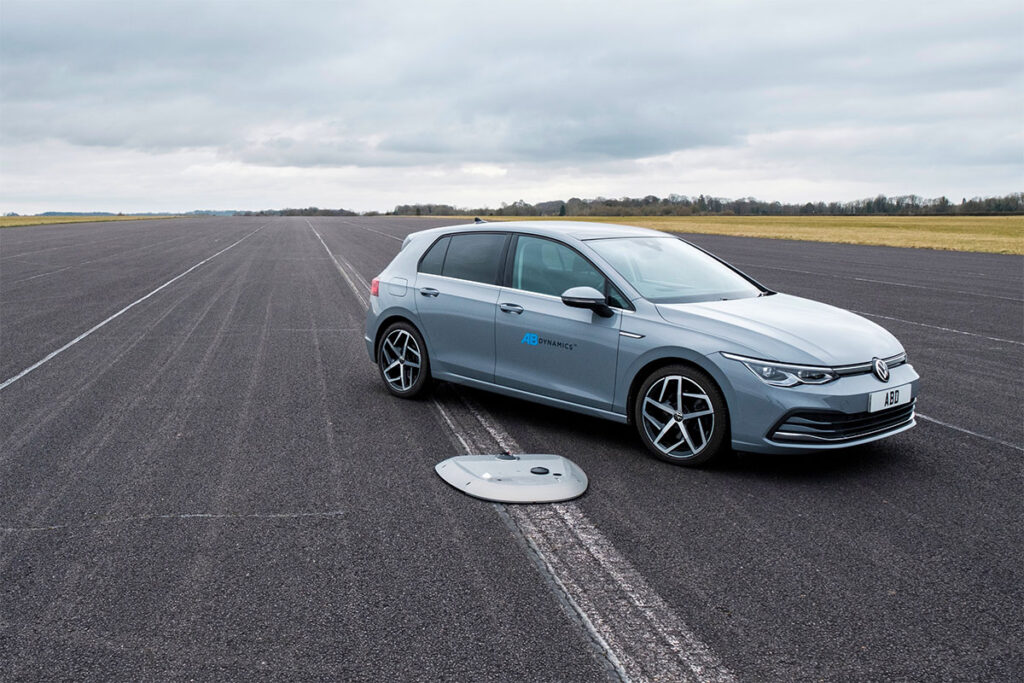

Perfect for testing lane keeping assist or adaptive cruise control systems, the GST 100 is capable of a maximum speed of 100 km/h. A self-propelled platform, the GST 100 is designed to carry the Soft Car 360 impactable vehicle target, which separates into lightweight parts on impact, avoiding damage to the test vehicle. Using our proven path following technology, the GST 100 offers unbeatable position and speed accuracy.

The GST 100 can operate using our telemetry systems, together with our powerful Synchro software. This allows perfect synchronisation with your test vehicle, whether driven by robots or a human driver. Multiple tracker objects can also be synchronised with the subject vehicle, allowing complex ADAS scenarios to be created. We’ve also designed the GST 100 so that the onboard batteries will power it for a full day of testing - so there’s no need to swap battery packs.
Technical Information
Model GST100

Dimensions
Platform length 2950mm
Platform width 1680mm
Platform height (suspension retracted into chassis) 100 mm
Platform wheelbase 1400mm
Platform front track 790mm
Weight (approx.) 315kg
Performance
Path-following accuracy (1SD RMS typical maximum, compatible with OxTS and Genesys products) 2cm
Typical maximum speed (with Soft Car 360 target) 100km/h
Maximum acceleration (with Soft Car 360 target) 0.22g
Over-run capacity Up to 1000kg per wheel (500kg with ultra-low-profile top plate).
A HD version available for use with heavy trucks.
Compliance
Euro NCAP 2023 protocol Yes
Euro NCAP TB 029 Yes
ISO 19206-3 Yes
