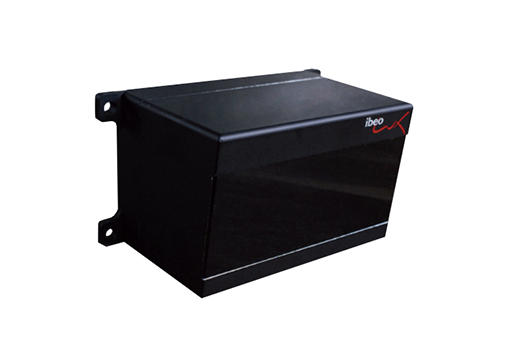

Lux 8L
ibeo standard eight layer/multi-echo Lux sensor
The ibeo LUX 8L laser scanner is similar to the standard ibeo LUX but it comes with a double vertical field of view and 8 layers, managed in two pairs of 4 layers.

The ibeo LUX 8L is specially designed for doing object tracking (upper 4 layers) and scanning the ground (lower 4 layers) at the same time.
Key Features
Based on the awarded ibeo laser scanning technology
Double vertical field of view (6.4deg) managed in two pairs of 4 layers
Embedded data (pre) processing (ground and clutter classifications)
Object tracking on top 4 layers and raw data ground scanning/profiling at the same time
Embedded object classification and tracking (up to 65 objects) on top four layers only
