xOEM Core

Overview

Applications

Key Features

Technical Information

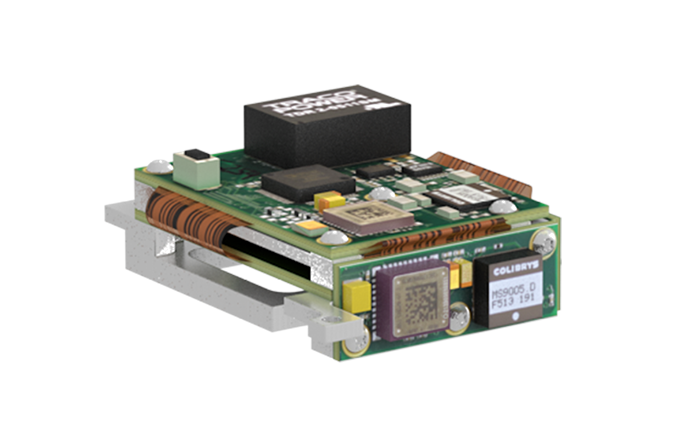

Lightweight and highly accurate IMU/INS for system integrators

The xOEMcore is a combined 6-axis inertial measurement unit and navigation system with sensor fusion in one compact OEM module. It is ideal for integration inside any solution that requires robust, high-performance position and orientation.

Applications

UAV surveying, mobile mapping

LiDAR, visual, remote sensing

Direct georeferencing

Robust indoor positioning

Multi-environment positioning

Autonomous vehicles and robots

Key Features

OEM product for integration

WGS84 strapdown navigator

Sensor fusion included

Tightly-coupled GPS processing

Dual-GNSS processing for heading

Inertially-aided RTK algorithms

RTCM V3 and RINEX DGPS

Odometer input

Post-processing option

Technical Information

Sensor	Accelerometers	Gyros
Technology	MEMS
Range	±30g	±300˚/s
Bias stability	20μg	3˚/hr
Linearity	0.05%
Scale factor	0.05%
Random walk	0.05mg/s/√hr	0.5˚/√hr
Axis alignment error	<0.05˚
