Large displacement measurement and high-level output in each capacity

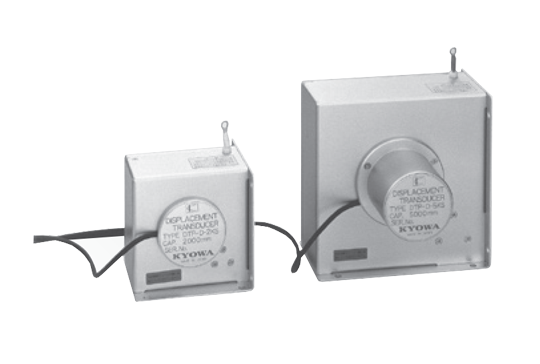

DTP-D-S displacement transducers are designed to measure displacement by converting expansion/contraction of a sensing wire to electric signal by potentiometer. Two models are available with rated capacity 2000 and 5000 mm, all providing a high rated output of 5 mV/V. In addition, measuring force of the wire is constant, thereby making these transducers easy to use.

Key Features

Compact, lightweight, and easy to install

Measurement possible with strain amplifier

Constant measuring force of the wire (With differences between pull-out and pull-in)

Stainless steel wire is used (SUS 304)

Technical Information

Model	DTP-D-2KS	DTP-D-5KS
Rated capacity	2000mm	5000mm
Nonlinearity	Within ±0.3%RO
Hysteresis	Within ±0.3%RO
Rated output	5mV/V (10000 × 10^-6 strain) ± 0.3%
Resolution	1/1850
Detection method	Potentiometer
Safe excitation	10V AC or DC
Recommended excitation	1 to 5V AC or DC
Input/Output resistance	350Ω ± 1%
Safe overloads	120%
Wire	0.45mm diameter, material SUS304
Weight	Approx. 550g (Excluding cable)	Approx. 1.4kg (Excluding cable)

Downloads

Brochure
