MD-SL

Overview

Key Features

Technical Information

Downloads

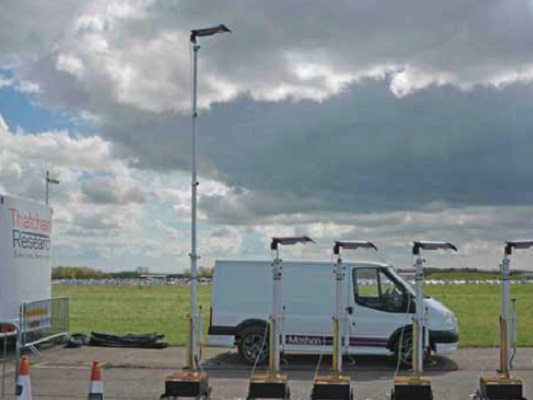

5 Lamp lighting solution

The new MD-SL NCAP lighting system is a complete 5-streetlamp system designed and tailored specifically for the NCAP AEB VRU night testing procedure. Moshon Data has worked very closely with both lighting and mast manufactures to create a complete lighting solution that provides everything you need to start testing to the NCAP specification from the day of delivery.

Key Features

Designed for EuroNCAP AEB VRU specification

Choice of lamp head

Precision mast alignment control to 0.1 deg

Choice of mast support

Option for Konica Minolta T-10A lightmeter

Our solutions include all cabling

Technical Information

Model	MD-SLZ	MD-SLS	MD-SLKZ	MD-SLKS
Luminaire power	8 - 50W	49W	8 - 50W	49W
Luminous efficacy	140lm/W	121lm/W	140lm/W	121lm/W
Luminous flux	-	5200lm	-	5200lm
Input voltage	240 or 24V	240V	240 or 24V	240V
IP Water ingress rating	IP66 (head) / IP44 (connectors)
Maximum wind speed resistance	56mph

Downloads

Brochure
