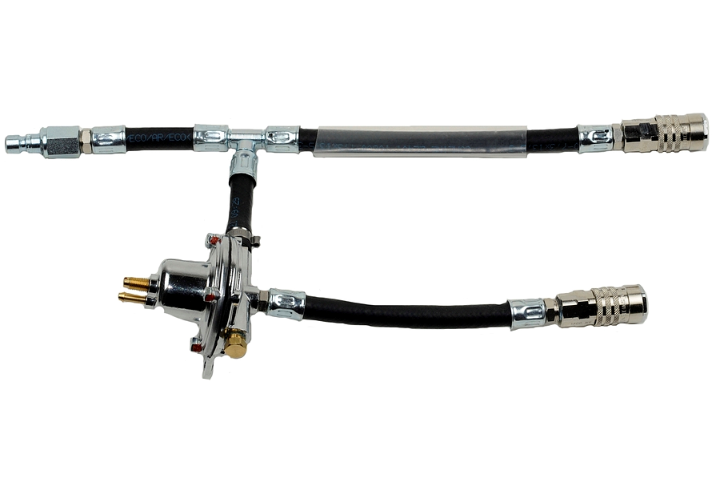

Pressure Regulator
Pressure regulator as an option to the heat exchange unit HE8005
To be used with engines having a low pressure fuel supply pump at the tank (pump@tank) or at the tank and an additional pump at the engine.

The pressure regulator provides an easy setup of the fuel supply to engine pressure adapted to the original values ​​(without built-in flowtronic system).
Key Features
Suitable for all fuel types, also for alcohol based and bio fuel
Pressure regulation range : Max. 7 bar
Circulation rate : Max. 100l/h
Without pressure gauge
For direct connection to the heat exchanger unit HE8005 with quick lock couplings NW5.8
