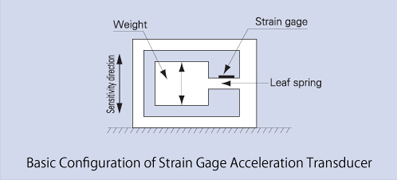

With the basic configuration shown below, acceleration initiates inertia force to the weight and deforms the leaf spring. The strain gage adhered to the leaf spring detects the displacement of the leaf spring as a strain quantity proportional to the acceleration. The strain gage signal is amplified to enable acceleration measurement. An advantageous feature of this configuration is to enable the transducer to respond to static acceleration at DC.
