BJB-C-S,D-S,E-S
3 models are available for selection of the most suitable one.

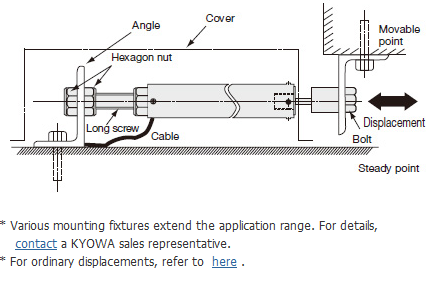

The BJB-C-S, BJB-D-S and BJB-E-S series displacement transducers are used as detectors for measurement of rock-bed displacement and ground settlement. Varieties of models are available for selection of the most suitable one based on the measuring range, dimensions and field situations.
?? BJB-C-S series is suitable for ordinary measurement of rock-bed displacement.
?? BJB-D-S series is available with high rated capacities and is suitable for measurement of the settlement of soft ground.
?? Slender BJB-E-S series is suitable for embedment in a boring and for rock-bed displacement measurement in NATM
| Model |
Rated Capacity |
L(mm) |
Remarks |
| BJB-C-100S |
100mm |
455 |
with a Coupler |
| BJB-C-200S |
200mm |
640 |
| BJB-D-500S |
500mm |
1144 |
Used as detector of
SVC, SVM, SDD |
| BJB-D-1KS |
1000mm |
1859 |
| BJB-D-2KS |
2000mm |
3289 |
| BJB-E-50S |
50mm |
417 |
with a Coupler |
| BJB-E-100S |
100mm |
416 |
| Performance |
| Rated Capacity |
See table above |
| Nonlinearity |
Within ??2% RO |
| Hysteresis |
Within ??1% RO |
| Rated Output |
Approx. 1 mV/V (2000??m/m) |
| Environmental Characteristics |
| Safe Temperature Range |
-20 to 70??C |
| Compensated Temperature Range |
-10 to 60??C |
| Temperature Effect on Zero Balance |
Within ??0.1% RO/??C |
| Temperature Effect on Output |
Within ??0.1%/??C |
| Electrical Characteristics |
| Recommended Excitation Voltage |
10V AC or DC |
| Input Resistance |
350???2% |
| Output Resistance |
350???2% |
| Cable |
4-conductor (0.5 mm2) chloroprene cable, bared at the tip |
| Cable |
| Model |
Diameter(mm) |
Cable Length(m) |
| BJB-C-S |
11.5 |
1 |
| BJB-D-S |
11.5 |
2 |
| BJB-E-S |
8 |
1 |
| Mechanical Properties |
| Safe Overload Rating |
120% (110% with BJB-D-S) |
| Measuring Force |
Approx. 78 N |
