BPC-A
For underground pore pressure measurement
Embedded in soil, BPC-A transducers measure underground pore pressures. A double-cased structure lets them perform without receiving any adverse effect from lateral pressures and makes them suitable for measurement where underground soil pressures change significantly. The cable length may be as desired.
?? Double-cased structure ensures measurement without receiving any effect of lateral pressure.
?? Flat filter (10??m mesh standard) is provided to prevent the sensing part from clogging.
?? Stainless steel case (including flat filter FB-10SUS)
| Model |
Rated Capacity |
| BPC-A-200KP |
200kPa |
| BPC-A-500KP |
500kPa |
| BPC-A-1MP |
1MPa |
| BPC-A-2MP |
2MPa |
| Nonlinearity |
Within ??2% RO (BPC-A-200KP) |
| Within ??1% RO (BPC-A-500KP to 2MP) |
| Hysteresis |
Within ??1% RO |
| Rated Output |
0.75 mV/V (1500??m/m) or more (BPC-A-200KP) |
| 1 mV/V (2000??m/m) or more (BPC-A-500KP to 2MP) |
| Environmental Characteristics |
| Safe Temperature Range |
0 to 80??C (BPC-A) (non-freezing) |
| Compensated Temperature Range |
0 to 60??C (non-freezing) |
| Temperature Effect on Zero Balance |
Within??0.1% RO/??C |
| Temperature Effect on Output |
Within??0.1%/??C |
| Electrical Characteristics |
| Recommendable Excitation Voltage |
2 to 10V AC or DC |
| Input Resistance |
350???1% |
| Output Resistance |
350???1% |
| Cable |
4-conductor (0.5 mm 2 ) chloroprene cable, |
| 11.5 mm diameter by 1 m long, bared at the tip |
| Mechanical Properties |
| Safe Overload Rating |
150% |
| Weight |
Approx.550g |
* Double shielded cable can also be manufactured.

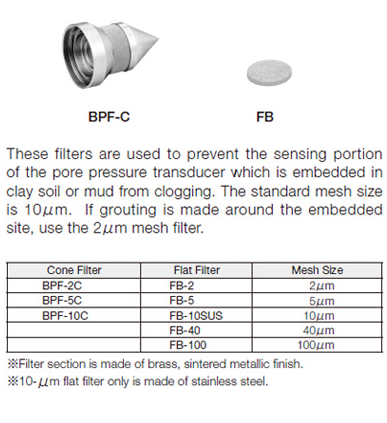

BPF and FB Filters for Pore Pressure Transducers
