  • BS-15CT

    For measurement of strain on steel and concrete surfaces.

    The BS-15CT surface mounting type strain transducer is developed especially for measurement of strain on steel and concrete surfaces. A temperature measuring function enables simultaneous measurement of strain and temperature. Installed on a pile or steel sheet pile, the rugged design endures vibration initiated by driving the pile.
    Features
    ?? Self-temperature compensation type with linear expansion coefficient approximated
        to that of concrete (11??m/m/??C)
    ?? Large capacity (??2000??m/m), high-shock and vibration-resistance,
        and integrated mounting legs
    ?? Applicable for steel pipe piles, steel pipe laggings, steel sheet piles and hydraulic iron pipes
        in power stations
    PDF Download
    Specifications
    Strain Measurement
    Rated Capaci ??2000 ??m/m
    Nonlinearity Within ??2% RO
    Hysteresis Within??2% RO
    Rated Output ??0.625 to ??1.25 mV/V
    (??1250 to ??2500 ??m/m)
    Temperature Measurement
    Rated Capacity -30 to 70 ??C
    Temperature Measurement Error ??0.5 ??C(-30 to 70 ??C)
    (Refer to Small-Sized Temperature Transducer BTS-100AT)
    Environmental Characteristics
    Safe Temperature Range -30 to 80??C
    Compensated Temperature Range -20 to 70??C
    Temperature Effect on Output Within??0.05%/??C
    Electrical Characteristics
    Safe Excitation Voltage 2 to 10V AC or DC
    Input Resistance (at 0??C) 350 ?? ??2%
    Output Resistance (at 0??C) 450 ?? ??1.6%
    Cable 4-conductor (0.5 mm 2 ) chloroprene shielded cable,
    9.6 mm diameter by 1 m long, bared at the tip

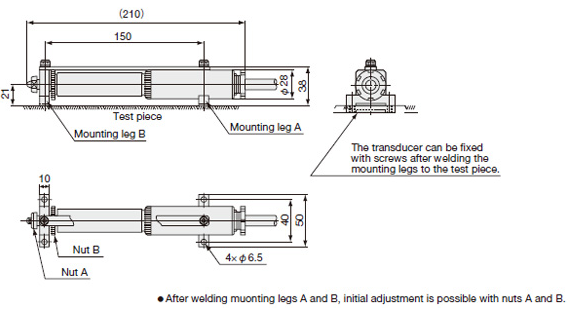

    Mechanical Properties
    Gage Mark Distance 150mm
    Safe Overload Rating 150%
    Apparent Linear Expansion Coefficient

    (11??1)??m/m/??C

    Weight

    Approx. 700 g
