BLW-A
To endure field applications, these transducers feature a waterproof design, Lightweight, and Thin design.

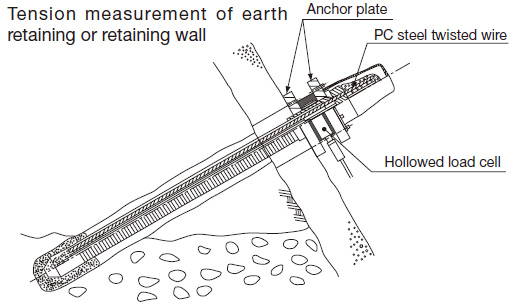

Designed to measure load of VSL anchor, etc.
?? Eccentric load or inner/outer load causes less sensitivity deviation.
?? Large center hollow making it suitable for VSL method
?? Waterproof structure, protection rating IP68 (0.5 MPa for 24 hours at 23??C??15??C)
?? Thin design
?? Lightweight
| Model |
Rated Capacity |
Weight(Approx.) |
| BLW-A-500KN |
500kN |
4kg |
| BLW-A-1MN |
1MN |
8kg |
| BLW-A-1500KN |
1500KN |
14kg |
| BLW-A-2MN |
2MN |
14.5kg |
| Performance |
| Nonlinearity |
Within ??0.8% RO |
| Hysteresis |
Within??0.5% RO |
| Rated Output |
1.25mV/V(2500??m/m) or more |
| Environmental Characteristics |
| Safe Temperature Range |
-20 to 70??C |
| Compensated Temperature Range |
-10 to 60??C |
| Temperature Effect on Zero Balance |
Within??0.05%RO/??C |
| Temperature Effect on Output |
Within??0.05%/??C |
| Electrical Characteristics |
| Safe Excitation Voltage |
15V AC or DC |
| Input Resistance (at 0??C) |
350 ?? ??0.3% |
| Output Resistance (at 0??C) |
350 ?? ??2% |
| Cable |
4-conductor (0.5 mm 2 ) chloroprene shielded cable, |
| 9.6 mm diameter by 1 m long, bared at the tip |
| (Shield is not connected to the chassis.) |
| Mechanical Properties |
| Safe Overload Rating |
150% |
| Protection Rating |
IP68 (endures 0.5 MPa water pressure for 24 hours at 23??C ??15??C) |
