  • DTH-A

    Compact and Lightweight Design, Excellent Temperature Characteristics, and Highly Accurate with Nonlinearity ??0.1% RO

    DTH-A series displacement transducers adopt a strain gage for the sensing element to ensure long-term stable measurement. They can widely be used for measurement of structural relative displacement or absolute displacement from a steady point.
    Features
    ?? Large output of 5 mV/V (10000??m/m)
    ?? Small measuring force of approx. 1.5 to 4 N
    * TEDS-installed versions can be manufactured.  Inquiries  are welcome.
    PDF Download
    Specifications
    Model Rated Capacity Measuring Force
    (Approx.)
    Weight
    (Approx.)
    DTH-A-5 5mm 1.5N 30g
    DTH-A-10 10mm 2.2N 35g
    DTH-A-20 20mm 2.2N 35g
    DTH-A-30 30mm 2.2N 40g
    DTH-A-50 50mm 3N 75g
    DTH-A-100 100mm 4N 200g
    Performance
    Rated Capacity See table above
    Nonlinearity Within ??0.1% RO
    Hysteresis Within ??0.1% RO
    Repeatability 0.1% RO or less
    Rated Output 5mV/V (10000 um/m) or more
    Environmental Characteristics
    Safe Temperature Range -10 to 70 o C (non-condensing)
    Compensated Temperature Range 0 to 60 o C (non-condensing)
    Temperature Effect on Zero Balance Within??0.01% RO/??C
    Temperature Effect on Output Within??0.01%/??C
    Electrical Characteristics
    Safe Excitation Voltage 6V AC or DC
    Recommended Excitation Voltage 1 to 5V AC or DC
    Input Resistance 350?? ??1%
    Output Resistance 350?? ??1%
    Cable 4-conductor (0.065 mm 2 ) vinyl shielded cable,4mm diameter by 3 mm long, bared at the tip
    (Shield wire is not connected to mainframe.)
    Mechanical Properties
    Frequency Response Range DC to approx. 2 Hz
    Measuring Force See table above
    Weight See table above (not including cable)
    Standard Accessories

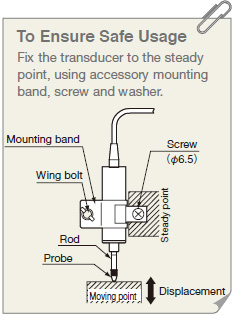

    Mounting Band 1 for DTH-A-5 to 30
    2 for DTH-A-50 and 100
    Optional Accessories
    Extension rods: EB-50/100/200
    Replacement probes: X/XS/SH
    Magnet base: MB-B

    Notes:
    1. Initial unbalance with the rod fully extended is approximately -5000 to -6000 ??m/m.
    2. Do not apply any displacement in other than expansion/contraction direction of the rod.
