TP-D,E
Large Voltage Enables to Measure Small Torque
TP-M series high-speed torque transducers can measure torque at a maximum 15000 rpm, and are available with a rated capacity ranging from 0.2 to 5 N ・m.
An overload prevention stopper avoids large torque generated in motor startup, etc. While all models are the stationary type with mounting legs, these legs can be easily removed. About measurement instruments, carrier-type strain amplifiers, DPM series are recommended.
?? Two types are available : simple installation and stationary.
| Model |
Rated Capacity |
Rated Torsion Angle,
(Approx.) |
Rated Spring Constant,
(Approx.) |
| TP-2KCD, E |
0.2N・m |
0.027rad |
7.4N??m/rad |
| TP-5KCD, E |
0.5N・m |
0.017rad |
29.4N??m/rad |
| TP-10KCD, E |
1N・m |
0.015rad |
66.7N??m/rad |
| TP-20KCD, E |
2N・m |
0.013rad |
153.8N??m/rad |
| Performance |
| Rated Capacity |
See table above |
| Nonlinearity |
Within ??0.1% RO |
| Hysteresis |
Within ??0.1% RO |
| Rated Output |
0.75 to 1.5mV/V (1,500 to 3,000??m/m) |
| Environmental Characteristics |
| Safe Temperature Range |
0 to 60 o C |
| Compensated Temperature Range |
0 to 60 o C |
| Temperature Effect on Zero Balance |
Within??0.03% RO/??C
|
| Temperature Effect on Output |
Within??0.03%/??C |
| Electrical Characteristics |
| Recommended Excitation Voltage |
1 to 4V AC or DC |
| Input Resistance |
350?? ??0.5% |
| Output Resistance |
350?? ??0.5% |
| Cable |
4-conductor (0.3mm2 ) chloroprene shielded cable,7.6 mm diameter by 5 m long, terminated with connector plug at both ends |
| (Shield wire is not connected to mainframe.) |
| Mechanical Properties |
| Safe Overload Rating |
120% |
| Max. Speed |
4,000 rpm |
| Angle of Torsion |
See table above |
| Torsion Spring Constant |
See table above |
| Moment of Inertia |
Approx.0.081??10 -4 kg･m2 |
| Weight |
Approx. 560 g (TP-D), Approx. 610 g (TP-E) |
Note : Starting torque: Approx. 0.02 N･m (reference value)
Dedicated flexible couplings FC-1B/FC-2B

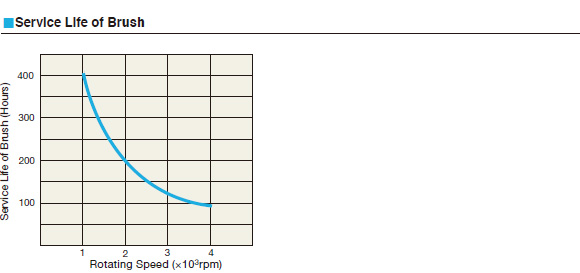

Note: Worn brushes can be replaced for val
