  • KFV-2-350-C1

    The KFV can stably test strain under high-pressure in hydrogen gas

    The KFV is the achievement of joint research with NEDO (New Energy and Industrial Technology Development Organization).
    Features
    - Suitable strain measurement in hydrogen gas
    - Minimal gage-resistance change in hydrogen gas
    PDF Download
    Specifications
    Gage Pattern Uniaxial
    Gage Length 2 mm
    Gage Resistance 350??3.5 ??
    (Excitation Voltage: 2V or less)
    (Excitation Current: 5.7mA or less)
    Materials Resistive Element: FeCr alloy foil
    Base: Polyimide resin
    Laminate Film: None
    Gage Lead Polyester-coated copper wire ϕ0.14 Gage Lead by 15 mm long.
    Applicable Linear Expansion Coefficient N/A
    Operating Temperature Range -30 to 80 oC
    Applicable Adhesive PC-600
    Gage Factor Approx. 2.5
    Pressure Resistance under Hydrogen Gas 90 MPa or less
    Package 2 pieces/pkg
    Dimensions See dimensions diagram right

    ??For "Safety Precautions", see the overleaf, please. ??Before purchasing, be sure to check the " KFV Environment Check Sheet" and submit the " OUR CONSENT IN RELATION WITH THE USE OF PARTICULAR STRAIN GAGE" to KYOWA, please.
    Optional Accessories
    Gage Terminal T-F25
    Leadwire SKW-1651-0.5M: 0.5m long
    SKW-1651-1M: 1m long
    (??0.14 Polyester-coated copper wire)
    Adhesive PC-600

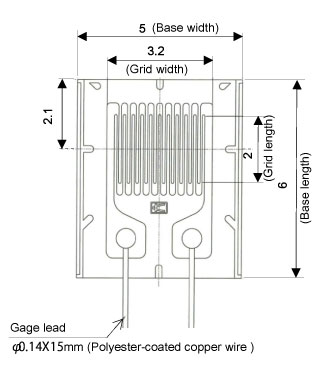

    Dimensions

    Dimensions

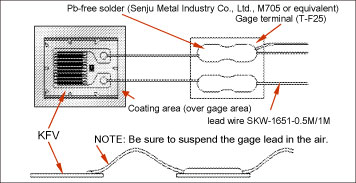

    Wiring diagram
