Compact, Lightweight, and Usable at 150??C at Maximum
The PHF-S-SA4 series is strain gage pressure transducers designed to be smaller and more lightweight than the PHF-S-SA2 series and usable at up to 150??C .| Model Name | Rated Capacity | Natural Frequency (Approx.) |
|---|---|---|
| PHF-S-2MPSA4 | 2MPa | 110kHz |
| PHF-S-5MPSA4 | 5MPa | 120kHz |
| PHF-S-10MPSA4 | 10MPa | 170kHz |
| Performance | |
|---|---|
| Rated Capacity | Refer to table above |
| Nonlinearity | Within ??0.3% RO |
| Hysteresis | Within ??0.2% RO |
| Rated Output | Approx. 0.5 mV/V (1000 ??m/m) |
| Environmental Characteristics | |
| Safe Temperature Range | -40 to 170??C (except for connector) |
| Compensated Temperature Range | -40 to 150??C (except for connector) |
| Temperature Effect on Zero Balance | Within ??0.05%RO/??C |
| Temperature Effect on Output | Within ??0.05%/??C |
| Electrical Characteristics | |
| Safe Excitation Voltage | 5V AC or DC |
| Recommended Excitation Voltage | 1 to 2V AC or DC |
| Input Resistance | 350???5% |
| Output Resistance | 350???5% |
| Cable | 4-conductor (0.09 mm 2 ) fluoroplastic shielded cable, 3 mm diameter |
| by 50 cm long, terminated with R04-P5M connector plug | |
| Mechanical PropertiesConnector | |
| Safe Overload Rating | 150% |
| Natural Frequency | Refer to table above |
| Material | IP63 |
| Weight | Approx. 20 g |

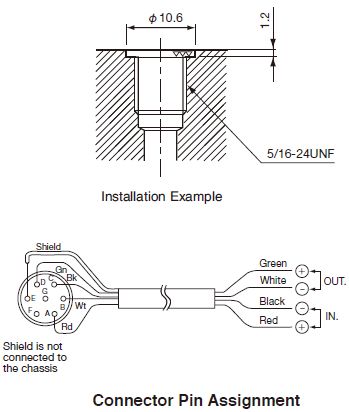

| Mounting Screw | 5/16-24UNF |
