LUH-F
Excellent Zero Float Characteristics Model (Approx.) (LUH-50 to 500KF) Tension/Compression Load Cells
LUH-F series is tension/compression load cells featuring 1/5000 accuracy.
The hermetically-sealed structure with inert gas filled in ensures stable characteristics.
?? Remote sensing possible
Model |
Rated Capacity |
Natural Frequency (Approx.) |
Weight(Approx.) |
LUH-50KF |
??500N |
1.4kHz |
2.1kg |
LUH-100KF |
??1kN |
2.2kHz |
LUH-200KF |
??2kN |
3.1kHz |
LUH-500KF |
??5kN |
4.6kHz |
LUH-1TF |
??10kN |
4.2kHz |
4kg |
LUH-2TF |
??20kN |
6kHz |
4kg |
LUH-5TF |
??50kN |
5.2kHz |
9kg |
LUH-10TF |
??100kN |
4.5kHz |
19kg |
LUH-20TF |
??200kN |
3.7kHz |
38kg |
Performance |
Rated Capacity |
See table above |
Nonlinearity |
Within??0.2% RO
|
Hysteresis |
Within??0.2% RO
|
Repeatability |
0.02% RO or less
|
Zero Float |
0.02% RO or less (LUH-50KF to 500KF) |
Rated Output |
2 mV/V (4000??m/m) ??0.1%
|
Environmental Characteristics |
Safe Temperature Range |
-30 to 85??C |
Compensated Temperature Range |
-10 to 60??C |
Temperature Effect on Zero Balance |
Within??0.0015% RO/??C |
Temperature Effect on Output |
Within??0.001%/??C |
Electrical Characteristics |
Safe Excitation Voltage |
20V AC or DC |
Recommended Excitation Voltage |
1 to 10V AC or DC |
Input Resistance |
350???0.5% |
Output Resistance |
350???0.5% |
Cable |
4-conductor (0.3 mm 2 ) chloroprene shielded cable,
9.5 mm diameter by 5 m long, with press-fit terminal for 4 mm |
(Shield wire is not connected to mainframe.) |
Mechanical Properties |
Safe Overload Rating |
150% |
Natural Frequency |
See table above |
Weight |
See table above |
Others |

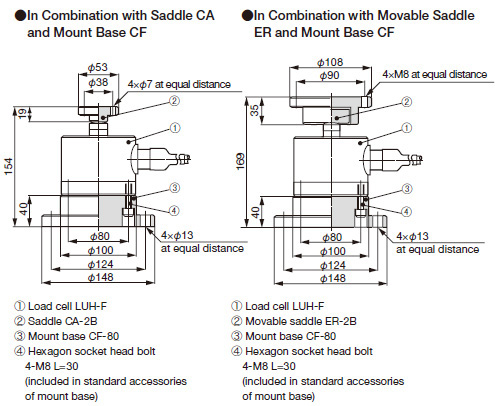

Drop prevention stopper mountable |
Critical overload |
1000% (LUH-50 to 500KF) |
4 hexagon socket head setscrews M5 L=10 mm
(30 mm with LUH-10TF and 20TF)
1 hexagon bar (opposite side 25 mm)
