LUK-A
Compact,Light Weight, Tension/Compression Load Cells

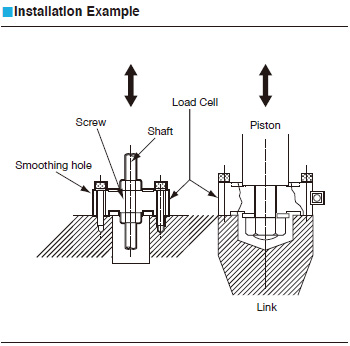

The thin structure is suitable for installation where
the height is limited. The service life can be extended
by using with one-half the rated capacity if repetitive
loads are applied continuously.
* When used for tension, special accessories such as ball-joint and rotating attachment.
* TEDS-installed versions can be manufactured. Inquiries are welcome.
Model |
Rated Capacity |
Natural Frequency(Approx.) |
Safe Moment |
Safe Lateral
Force Component |
Weight(Approx.) |
LUK-A-5KN |
??5kN |
7.4kHz |
15N・m |
250N |
900g |
LUK-A-10KN |
??10kN |
10.8kHz |
30N・m |
500N |
LUK-A-20KN |
??20kN |
8.5kHz |
60N・m |
1kN |
2.7kg |
LUK-A-50KN |
??50kN |
11kHz |
150N・m |
2.5kN |
4.3kg |
LUK-A-100KN |
??100kN |
9kHz |
500N・m |
5kN |
7.5kg |
LUK-A-200KN |
??200kN |
7.5kHz |
1kN・m |
10kN |
20kg |
LUK-A-500KN |
??500kN |
5.2kHz |
2.5kN・m |
25kN |
50kg |
LUK-A-1MN |
??1MN |
5kHz |
5kN・m |
50kN |
90kg |
LUK-A-2MN |
??2MN |
3.9kHz |
10kN・m |
100kN |
245kg |
Performance |
Rated Capacity |
See table above |
Nonlinearity |
Within??0.1% RO (LUK-A-5KN to 200KN)
Within??0.2% RO (LUK-A-500KN to 2MN)
|
Hysteresis |
Within??0.1% RO (LUK-A-5KN to 200KN)
Within??0.2% RO (LUK-A-500KN to 2MN)
|
Repeatability |
0.05% RO or less (LUK-A-5KN to 200KN)
0.1% RO or less (LUK-A-500KN to 2MN)
|
Rated Output |
??2mV/V (??4000??m/m)
??0.1% (??10% with 5KN to 20KN)
|
Environmental Characteristics |
Safe Temperature Range |
-35 to 80??C |
Compensated Temperature Range |
-10 to 70??C |
Temperature Effect on Zero Balance |
Within??0.005% RO/??C |
Temperature Effect on Output |
Within??0.005%/??C |
Electrical Characteristics |
Safe Excitation Voltage |
15V AC or DC |
Recommended Excitation Voltage |
1 to 10V AC or DC |
Input Resistance |
350???1% |
Output Resistance |
350???1% |
Cable |
4-conductor (0.3 mm 2 ) chloroprene shielded cable,
7.6 mm diameter by 5 m long, terminated with connector plug |
(Shield wire is not connected to mainframe.) |
Mechanical Properties |
Safe Overload Rating |
150% |
Natural Frequency |
See table above |
Weight |
See table above (not including cable) |
Safe Lateral Force Component |
See table above |
Safe Moment |
See table above |
