LCTE-A
Advanced Thin Design. Compared to the Conventional Load Cell, the Height is 1/2 to 1/3 Enabling a Wider Range of Applications.
10 to 100 kN

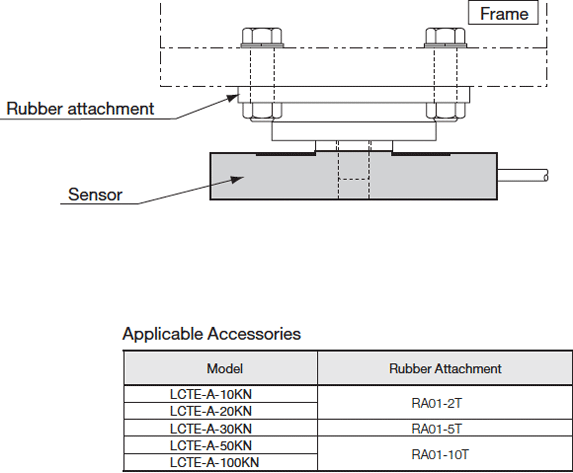

?? Optional dedicated rubber attachment enables fixing the top and bottom with bolts,
thereby making it possible to design the system with no tension rod or stay rod used.
?? Safety factor is 3 to 5 times higher than conventional type.
Endures lateral loads up to 20% of the rated capacity.
?? Rubber attachment attenuates impact energy and lessens
the effects of thermal expansion of system and the moment of fixed section.
?? Rubber attachement enables easy installation without concern for parallelism.
?? Varieties of accuracies and outputs are available,
enabling configuration of the most suitable system for each application.
?? Peripheral instruments such as amplifiers can easily be connected since
the wirings are the same as conventional load cells.
*TEDS-installed versions can be manufactured. Inquiries are welcome.
| Model |
Rated Capacity |
Weight(Approx.) |
| LCTE-A-10KN |
10kN |
3.2kg |
| LCTE-A-20KN |
20kN |
5.1kg |
| LCTE-A-30KN |
30kN |
| LCTE-A-50KN |
50kN |
6.9kg |
| LCTE-A-100KN |
100kN |
7.2kg |
| Model |
Rated Capacity |
Weight(Approx.) |
| LCTE-A-10KN |
10kN |
3.2kg |
| LCTE-A-20KN |
20kN |
5.1kg |
| LCTE-A-30KN |
30kN |
| LCTE-A-50KN |
50kN |
6.9kg |
| LCTE-A-100KN |
100kN |
7.2kg |
| Performance |
| Rated Capacity |
See table above |
| Nonlinearity |
Within??0.05% RO (0.1% RO with 100KN) |
| Hysteresis |
Within??0.05% RO (0.1% RO with 100KN) |
| Repeatability |
0.03% RO (??0.05% RO with 100KN) or less |
| Rated Output |
2 mV/V (4000??m/m) ??0.2% |
| Environmental Characteristics |
| Safe Temperature Range |
-20 to 70??C |
| Compensated Temperature Range |
-10 to 60??C |
| Temperature Effect on Zero Balance |
Within??0.003% RO/??C |
| Temperature Effect on Output |
Within ??0.003%/??C |
| Electrical Characteristics |
| Safe Excitation Voltage |
20V DC |
| Recommended Excitation Voltage |
1 to 10V DC |
| Input Resistance |
350???1.5% |
| Output Resistance |
350???1.5% |
| Cable |
4-conductor (0.3 mm 2 ) chloroprene shielded cable,
6 mm diameter by 5 m long (10 m long with100KN), |
| bared at the tip (Shield wire is not connected to mainframe) |
| Mechanical Properties |
| Safe Overload Rating |
150% |
| Critical Lateral Load |
50% (maximum load which does not cause any mechanical damage) |
| Weight |
See table above |
| Material |
Aluminum alloy |
Precautions
1. LCTE-A cannot be used for any onboard measurement.
2. LCTE-A cannot be used in an environment where it is frequently exposed to lateral load.
3. LCTE-A cannot be installed to any inclined or vertical surface.
