  • LCTA-A

    Advanced Thin Design. Compared to the Conventional Load Cell, the Height is 1/2 to 1/3 Enabling a Wider Range of Applications.

    Original ideas and advanced technologies cultivated in weight control of large scale airplanes made the revolutionary thin design of the LCTA-A series load cells possible. The integrated design and rubber attachment enable use with the top and bottom fixed and provide excellent buffer.
    Features

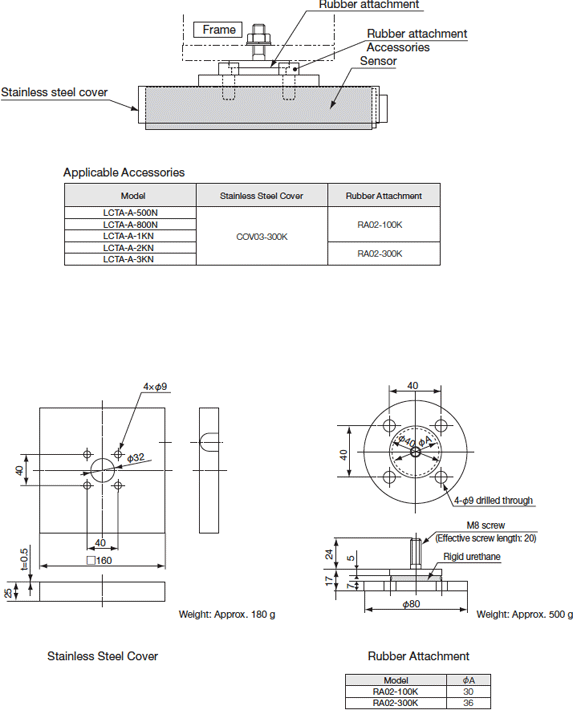

    ?? Optional dedicated rubber attachment enables fixing the top and bottom with bolts,
        thereby making it possible to design the system with no tension rod or stay rod used.
    ?? Safety factor is 3 to 5 times higher than conventional type.
        Endures lateral loads up to 20% of the rated capacity.
    ?? Rubber attachment attenuates impact energy and lessens
        the effects of thermal expansion of system and the moment of fixed section.
    ?? Rubber attachement enables easy installation without concern for parallelism.
    ?? Varieties of accuracies and outputs are available,
        enabling configuration of the most suitable system for each application.
    ?? Peripheral instruments such as amplifiers can easily be connected since
        the wirings are the same as conventional load cells.


    *TEDS-installed versions can be manufactured. Inquiries  are welcome.
    PDF Download
    Specifications
    Model Rated Capacity
    LCTA-A-500N 500N
    LCTA-A-800N 800N
    LCTA-A-1KN 1kN
    LCTA-A-2KN 2kN
    LCTA-A-3KN 3kN
    Performance
    Rated Capacity See table above
    Nonlinearity Within ??0.5%RO
    Hysteresis Within ??0.5%RO
    Repeatability 0.03% RO or less
    Rated Output 2 mV/V (4000??m/m) ??0.2%
    Environmental Characteristics
    Safe Temperature Range -20 to 70??C
    Compensated Temperature Range -10 to 60??C
    Temperature Effect on Zero Balance Within??0.01% RO/??C
    Temperature Effect on Output Within ??0.01%/??C
    Electrical Characteristics
    Safe Excitation Voltage 20V DC
    Recommended Excitation Voltage 1 to 10V DC
    Input Resistance 350???1.5%
    Output Resistance 350???1.5%
    cable 4-conductor (0.5 mm 2 ) chloroprene shielded cable,
    8 mm diameter by 5 m long, terminated with connector plug
    (Shield wire is not connected to mainframe.)
    Mechanical Properties
    Safe Overload Rating 150%
    Critical Lateral Load 20% (maximum load which does not cause any mechanical damage)
    Natural Frequency See table above
    Weight Approx. 1.1 kg
    Material Aluminum alloy

    Precautions

    1. LCTA-A cannot be used for any onboard measurement.
    2. LCTA-A cannot be used in an environment where it is frequently exposed to lateral load.
    3. LCTA-A cannot be installed to any inclined or vertical surface.
