LMC-A

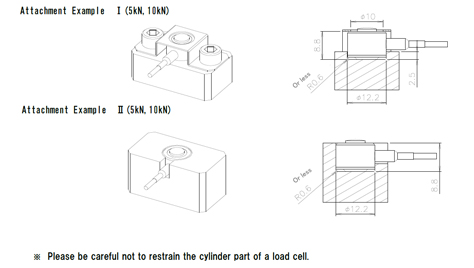

Compact and lightweight load cells can be used by merely placing or bonding on the load site, setting in a hollow, or affixing with a mounting band. Major applications include measurement of load distribution by using multiple units, load measurement in pipe making mills, or where a measuring site or the weight of the load cell itself is limited.

Features

Compact and high output accuracy
Suitable for load distribution measurement

PDF Download

Compression_Loadcells_LMC-A.pdf (7.3M)

Specifications

Model	Rated Capacity	Natural Frequency(Approx.)	Weight(Approx.)
LMC-A-5KN	5kN	32kHz	5g
LMC-A-10KN	10kN	38kHz	6g
LMC-A-20KN	20kN	41kHz	10g
LMC-A-50KN	50kN	29kHz	30g

Performance

Performance
Nonlinearity	Within ??0.5%RO (20kN, 50kN??Within ??1%RO)
Hysteresis	Within ??0.5%RO (20kN, 50kN??Within ??1%RO)
Repeatability	0.5%RO or less
Rated Output	1.5mV/V (3000??m/m) or more
Environmental Characteristics
Safe Temperature Range	-10 to 80??C
Compensated Temperature Range	0 to 70??C
Temperature Effect on Zero Balance	Within?? 0.05%/??C
Temperature Effect on Output	Within?? 0.05%/??C
Electrical Characteristics
Safe Excitation Voltage	7V??AC or DC
Recommended Excitation Voltage	1 to 6V??AC or DC
Input Resistance	350???2%
Output Resistance	350???2%
Cable	4-conductor(0.035 mm 2 )vinyl shielded cable, 1.7mm diameter by 2 m long, bared at the tip (Shield wire is not connected to mainframe)
Mechanical Properties
Safe Overload Rating	150%
Material	Stainless steel
Protection Rating	Approximately equivalent to IP64
