Sync-0

ADAS Driverless Testing Solutions

Sync-0

Overview

Key Features

Technical Information

Downloads

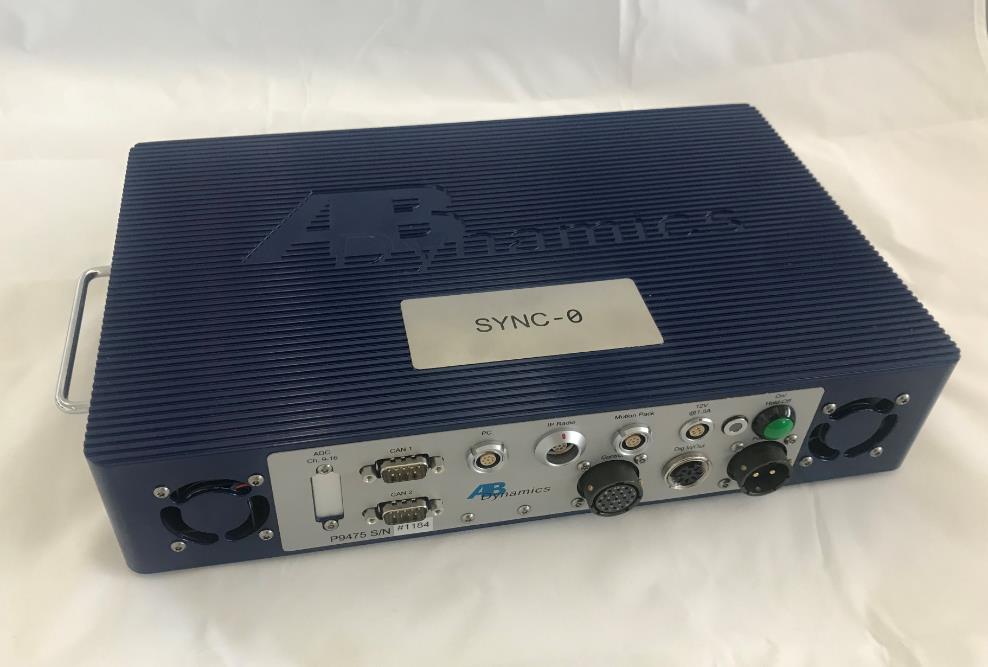

The Sync-0 provides a compact solution for measuring, monitoring and broadcasting vehicle data when testing Advanced Driver Assistance Systems (ADAS).

In conjunction with AB Dynamics Synchro software, the Sync-0 is a key part of the Synchro environment allowing multi-vehicle synchronisation with AB Dynamics ADAS targets; the Guided Soft Target (GST), Soft Crash Target (SCT), Soft Pedestrian Target (SPT) and LaunchPad.

Key Features

Compact design dramatically reduces the amount of hardware required in the test vehicle

Uses AB Dynamics Robot Controller software including data capture, path planning and charting utilities

Interfaces to the control PC running AB Dynamics Robot Controller software via Ethernet

Motion pack interface to OxTS, Genesys, iMar and Racelogic products (Ethernet or CAN depending upon motion pack type)

Compatible with AB Dynamics Synchro Software

Technical Information

Model	Sync-0
Mass	3 kg
Dimensions	380 × 220 × 65mm
Data capture frequency	User selectable up to 2khz
Digital I/0	4kHz scan frequency
Accessories	Auxillary 12V, 1.5A supply
Ethernet	Lemo sockets for PC and motion pack connection
Radio connection	Multi-Pin Lemo for connection to ABD TrackFi products
Power input	10-15 V DC (13V nominal)
Analogue input (option)	8 channel, 16-bit resolution at 4 kHz sample frequency
CAN (option)	CAN I/0
