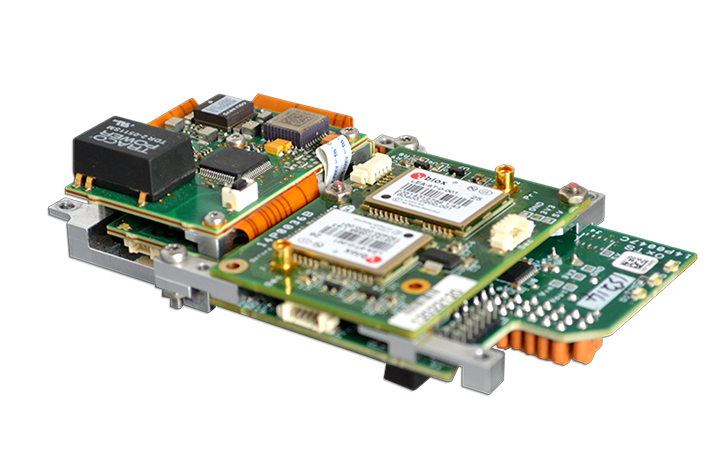

xOEM Board Set
Lightweight and highly accurate INS for system integrators

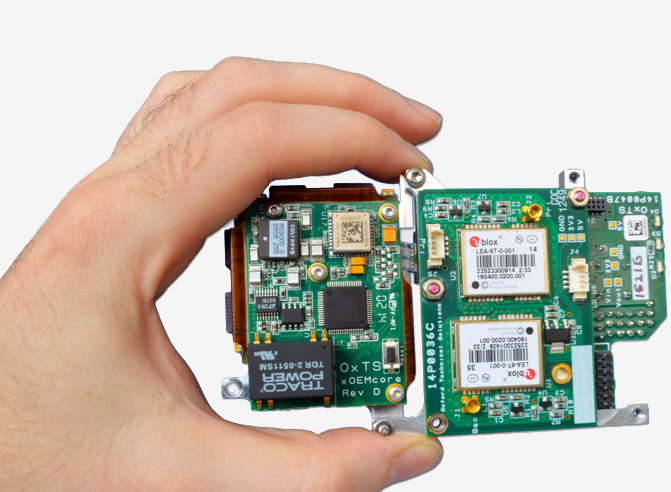

Small enough to fit the palm of your hand, the xOEM is ideal for integrating directly into systems that require a high performance inertial navigation system. The compact size and light weight means you no longer have to sacrifice performance in weight restricted installations like UAV payloads.
Built for system integrators
The xOEM series of inertial navigation systems offer Original Equipment Manufacturers (OEMs) and system integrators an extremely lightweight, compact solution for any application requiring a complete 3-D navigation solution. Based on the xNAV series, the xOEM series offers all the same great features and functionality but as an embedded GNSS+INS board set, shedding over two thirds of the weight and allowing manufacturers to integrate and build directly into their product.
Applications
Autonomous vehicles and UAVs
LiDAR scanning
Robotics and avionics
Camera stabilisation and motion analysis
Key Features
Development tools and resources supplied for easy integration
Simple synchronisation with other sensors
One of the worlds smallest tactical grade INS
Dual GNSS receivers
2 centimetre-level position
No export restrictions
Complete software suite included at no extra cost
Up to 250 Hz update rate
Technical Information
Model xOEM500 xOEM550
Positioning GPS L1 / GLONASS L1 (Option) GPS L1, L2 / GLONASS L1, L2 (Option)
Position accuracy 2m SPS / 0.5 m DGPS 1.6m CEP SPS / 0.4m DGPS / 0.02m RTK
Velocity accuracy 0.1km/h RMS
Roll / Pitch 0.05 1
Heading (2m baseline) 0.15 1 0.1 1
Acceleration bias stability 0.05mg
Acceleration range 5g
Angular rate bias stability 3/hr
Angular rate range 300/s
Measurement rate 100Hz
200 / 250Hz (Optional)
Operating temperature -40C to +70C
Power input 10 – 31V
Angular rate range 300/s
Dimensions 112mm x 65mm x 28 mm
Weight 120g 165g
Antenna connector MMCX Hirose H.FL
