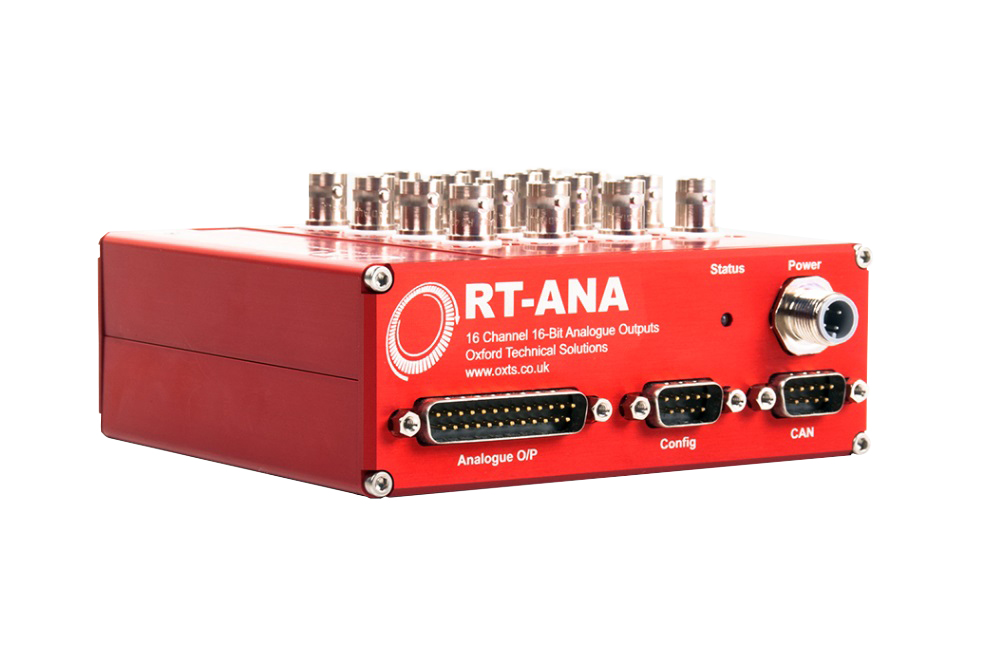

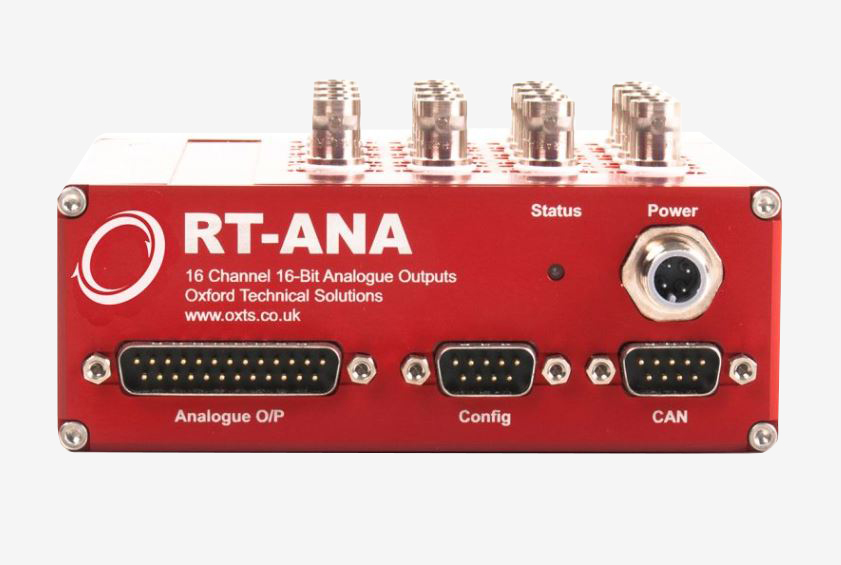

RT-ANA
Converts CAN signals to analogue output signals.
The RT-ANA unit is an interface converter that accepts CAN messages from the OxTS RT2000, RT3000 or RT4000 and converts them to analogue voltages.
Log data to older equipment that only accepts analogue input
All of our GNSS/INS products are capable of logging data internally, but it is not unusual in automotive tests to use one centralised data acquisition system to collect measurements from multiple devices. While Ethernet and CAN are the most suitable interfaces for transmitting measurements, some older acquisition systems only accept analogue inputs. The RT-ANA resolves this problem by converting up to 16 CAN measurements from a GNSS/INS device into real-time analogue outputs.
Application
Interfacing to external data acquisition systems
Key Features
16 channels
1.6kHz fast-update mode
10V output range
1mV output accuracy
