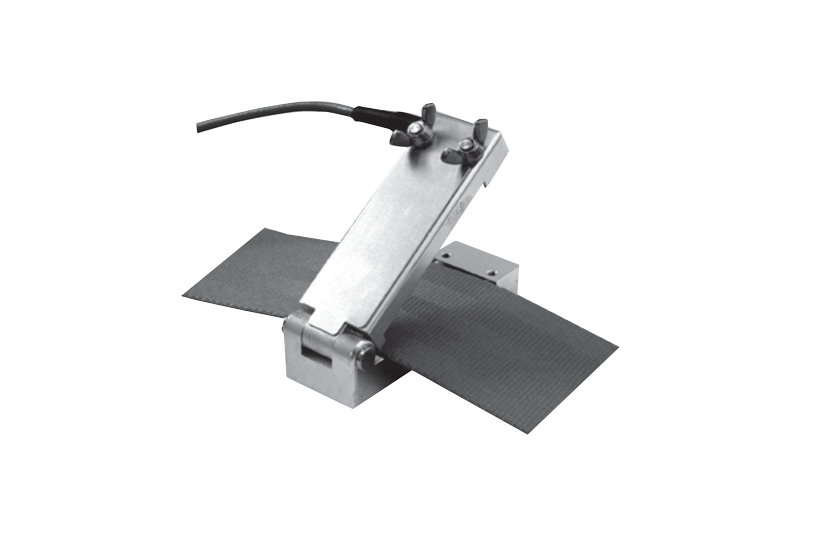

LBT-B-200NSA1-P
Compact, lightweight and Easy to install and remove
Designed to measure the belt tension to fasten the child seat, the LBT-B-200NSA1-P is compact, lightweight and designed to be easily attached to, or removed from the belt.
Technical Information
Model LBT-B-200NSA1-P
Rated capacity 200N
Nonlinearity Within 3RO
Rated output Approx. 0.75mV/V (1500 10-6 strain)
Safe Excitation 10VAC or DC
Recommended excitation 1 to 5 VAC or DC
Input/Output resistance 120 10
Insulation Resistance 500M or more (With 25VDC applied)
Safe overloads 150%
Weight Approx. 90g
Downloads
Brochure
