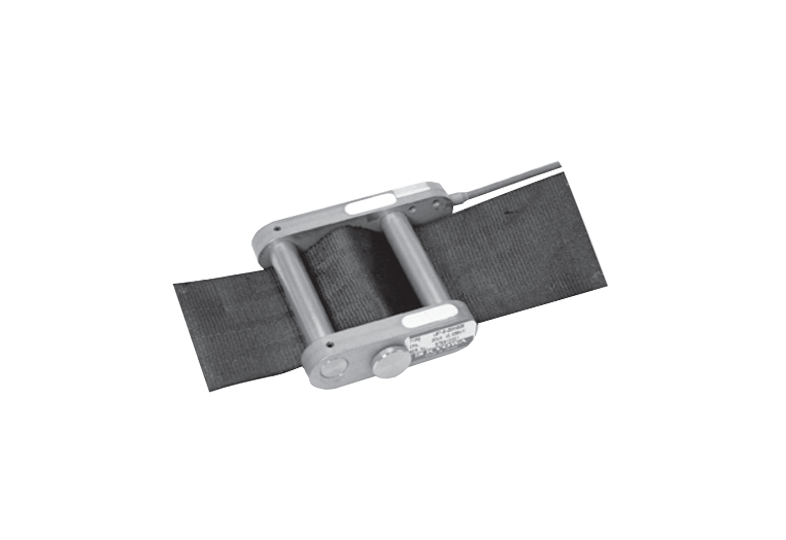

LBT-A-20KNSA1
Measuring impact-initiated tension of seat belt in crash tests
The LBT-A-20KNSA1 adopts strain gages, it detects the impact-initiated tension applied through the dummy to the seat belt.
Technical Information
Model LBT-A-20KNSA1
Rated capacity 20kN
Nonlinearity Within 2%RO
Rated output Approx. 2.5mV/V (5000 10-6 strain)
Safe Excitation 10VAC or DC
Recommended excitation 1 to 5 VAC or DC
Input/Output resistance 350 2%
Safe overloads 100%
Weight Approx. 130g
