SCW
Friction torque of window

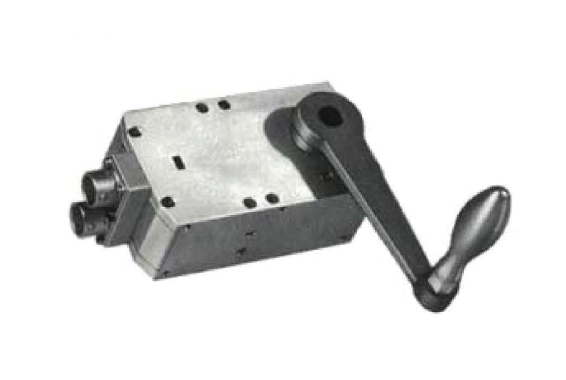

The SCW is a load cell to measure torque and angel of window lever.
Technical Information
Model SCW
Lever torque
Rated capacity 10Nm
Rated output 1mV/V
Nonlinearity 0.5%RO
Hysteresis 0.5%RO
Input/Output resistance 350 1%
Safe overloads 120%
Lever angle
Rated angle 3600 (360x 10 times)
Rated output 2mV/V
Nonlinearity 0.5%RO
Hysteresis 0.5%RO
Input/Output resistance 350 1%
