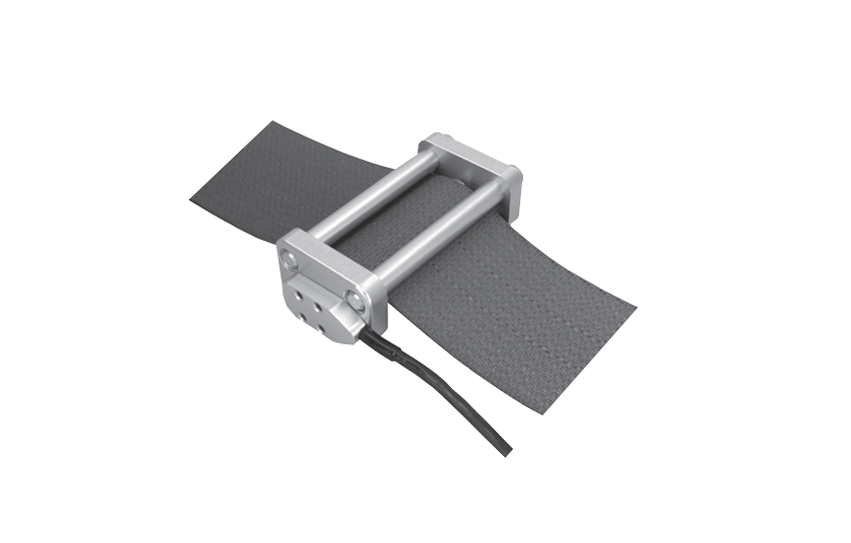

LBT-E
Compact and lightweight Improved nonlinearity
Even more compact and lightweight than former models. Additionally, the LBT-E improved nonlinearity with a built-in compensation circuit. This product has 2 types - left and right depending on the cable direction. Cable rechargeable model is also available by using connectors.
Technical Information
Model LBT-E-15KNSA1L/R LBT-E-20KNSA1L/R LBT-E-15KNSA2L/R LBT-E-20KNSA2L/R
Type Cable-integrated Connector-equipped
Rated Capacity 15kN 20kN 15kN 20kN
Nonlinearity Within 1.5%RO (15kN), within 2.0%RO (20kN)
(With a built-in compensation circuit)
Rated output Approx. 1.5mV/V (3000 10-6 strain) (15kN)
Approx. 1.0mV/V (2000 10-6 strain) (20kN)
Safe excitation 8VDC
Recommended excitation 2 to 5VDC
Input resistance 240 to 440
Output resistance 240 7%
Safe overloads 120% (15kN), 100% (20kN)
Weight Approx. 72g
* L: For the left seatR: For the right seat
