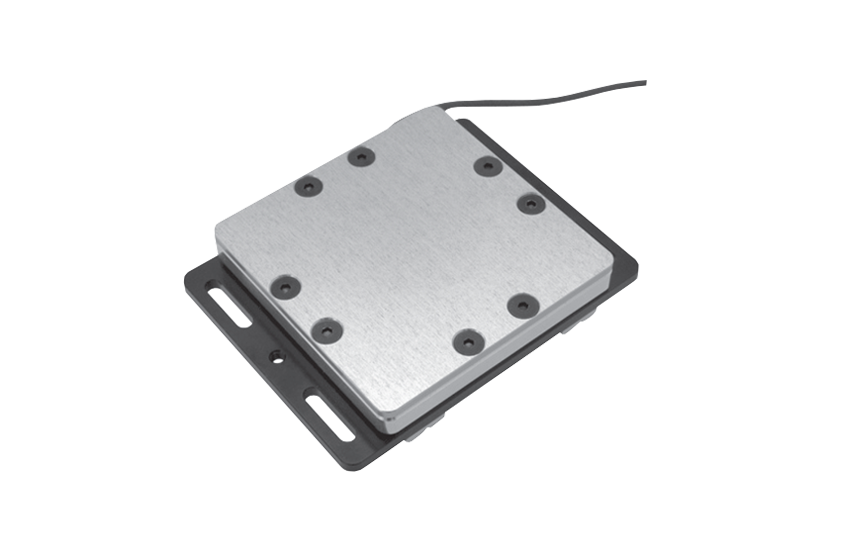

LPR-C
Easy installation, few error by offset-load, and applicable for various shapes of pedal
Easy mounting applicable different pedal configurations and offset load provide low output errors.
Key Features
Little influence on operation feeling due to thin profile and lightweight
Easy installation enables simple mounting to various shapes of brake pedal
Thin profile, thickness 12 mm
Few error by offset-load
Technical Information
Model LPR-C-02KNS15 LPR-C-03KNS15 LPR-C-05KNS15 LPR-C-1KNS15 LPR-C-2KNS15
Rated capacity 200N 300N 500N 1kN 2kN
Nonlinearity Within 0.3%RO
Hysteresis Within 0.3%RO
Rated output Approx. 0.9mV/V (1800 10-6 strain) Approx. 1.8mV/V
(3600 10-6 strain)
Safe excitation 8V AC or DC
Recommended excitation 1 to 5V AC or DC
Input/Output resistance 240 3%
Safe overloads 150%
Weight Approx. 110g (Excluding cable and accessories)
