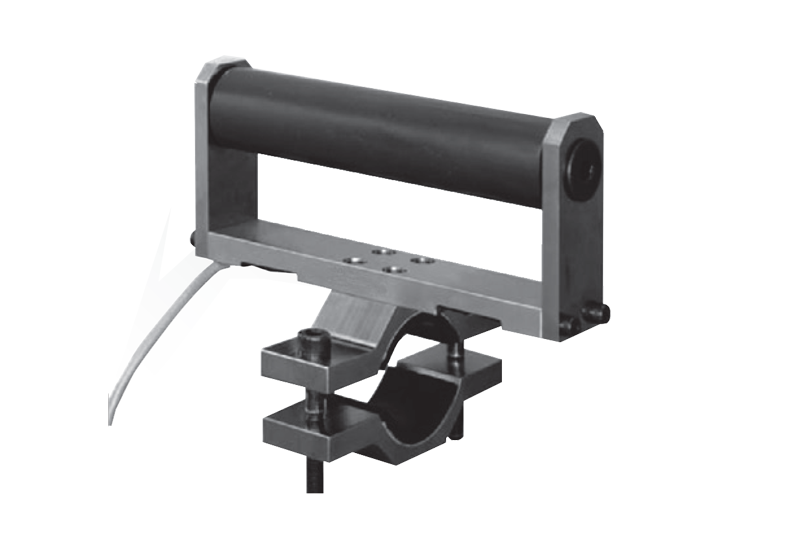

LBR-S-1KNSA2
Easy to install to hand brakes on the market
The LBR-S-1KNSA2 is a load cell to measure tension of hand brakes. The transducer measures ertical force applied to the hand brake accurately.
Technical Information
Model LBR-S-1KNSA2
Rated capacity 1kN
Nonlinearity Within 1.0%RO
Hysteresis Within 1.0%RO
Rated output Approx. 1.5mV/V (3000 10-6 strain)
Safe temperature -10 to 70C
Safe excitation 10V AC or DC
Recommended excitation 1 to 5V AC or DC
Input/Output resistance 240 4% or 350 3%
Safe overloads 120%
Weight Approx. 650g
