Adapter Set
Our Range of Adapter Set

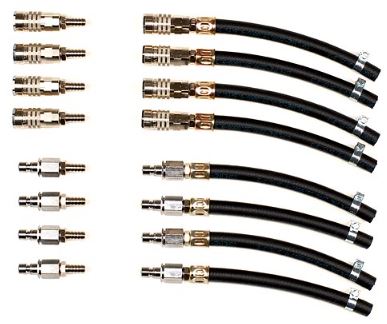

NW 5.8
4x Coupling with thread nipple DN 9mm (flow-0284)
4x Plug nipple NW5.8 with thread nipple DN 9mm (flow-0264)
4x Tube adapter, one end with coupling NW5.8, other end left open, tube length approx. 25cm, inner tube diameter according to article nr. , complete with tube clamp (flow-0274)
4x Tube adapter, one end plug nipple NW5.8, other end left open, tube length approx. 25cm, inner tube diameter according to article nr. , complete with tube clamp (flow-0271)
Required for the tube set flow-0277 for connecting to existing fuel tubes within the vehicle
Inner diameter 7.3 mm = flow-0299
Inner diameter 9.3 mm = flow-0300
Inner diameter 11.5 mm = flow-0301
Inner diameter 14 mm = flow-0302

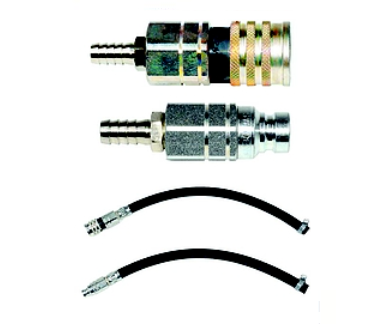

NW 6.3 FF
1x Coupling NW6.3FF with male adapter hose nipple (inner tube diameter according to article nr.)
Adapter tube with coupling NW6.3FF on one end, other end open, tube length approx. 0.4m (inner tube diameter according to article nr.)
1x Quick-lock plug NW6.3FF with male adapter hose nipple (inner tube diameter according to article nr.)
Adapter tube with quick-lock plug NW 6.3FF on one end, other end open, tube length approx. 0.4m (inner tube diameter according to article nr.)
Inner diameter 7.3 mm = flow-0486
Inner diameter 9.3 mm = flow-0487
Inner diameter 11.5 mm = flow-0488
Inner diameter 14 mm = flow-0489

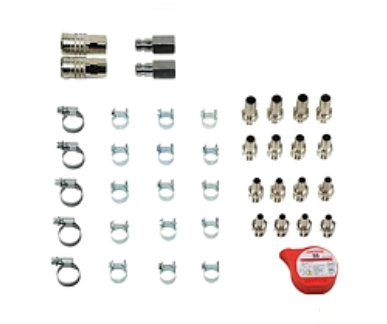

NW 9.5
2 Each quick lock coupling NW9.5 with thread hole G3/8
2 Each quick lock plug NW9.5 with thread hole G3/8
Sealing filiament
4 Each male adapter hose nipple for di=7.3mm, 9.3mm, 12 mm and 14mm
20 Tube clamps (from up to 14mm till up to 22mm)
for all inner tube diameters (7.3mm, 9.3mm, 12 mm and 14mm) = 103884
NW 10.0 FF
2 Each quick lock coupling NW10.0FF with thread hole G3/8
2 Each quick lock plug NW10.0FF with thread hole G3/8
Sealing filiament
4 Each male adapter hose nipple for di=7.3mm (DN9) and 12mm (DN13)
5 Each tube clamps 14mm and 22mm
for inner tube diameter 7.3 and 12mm = 103902

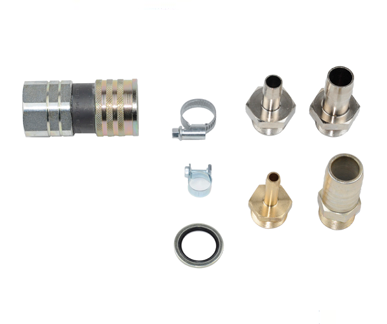

NW 16.0 FF
2 Each quick lock coupling NW16.0FF with thread hole G3/4
2 Each quick lock plug NW16.0FF with thread hole G3/4
Sealing filiament
4 Each male adapter hose nipple for di=7.3mm (DN9), 12mm (DN13), di=18mm (DN19) and di=24mm (DN25)
5 Each tube clamps 14mm, 22mm and 29mm
for all inner tube diameters (7.3mm, 9.3mm, 12 mm and 14mm) = 103866
